M54972FP

M54972FP, CMOS shift register, 8 V, 300 mA, 0.8 W, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.95~1.95 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 5822 :	1.95 / Piece

PartNumber:: M54972FP

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: SOIC | D/C: 99+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-04

From Other Seller

Part Number:M54972FP
US $1.95 - 1.95
Quantity:

piece

Product Summary

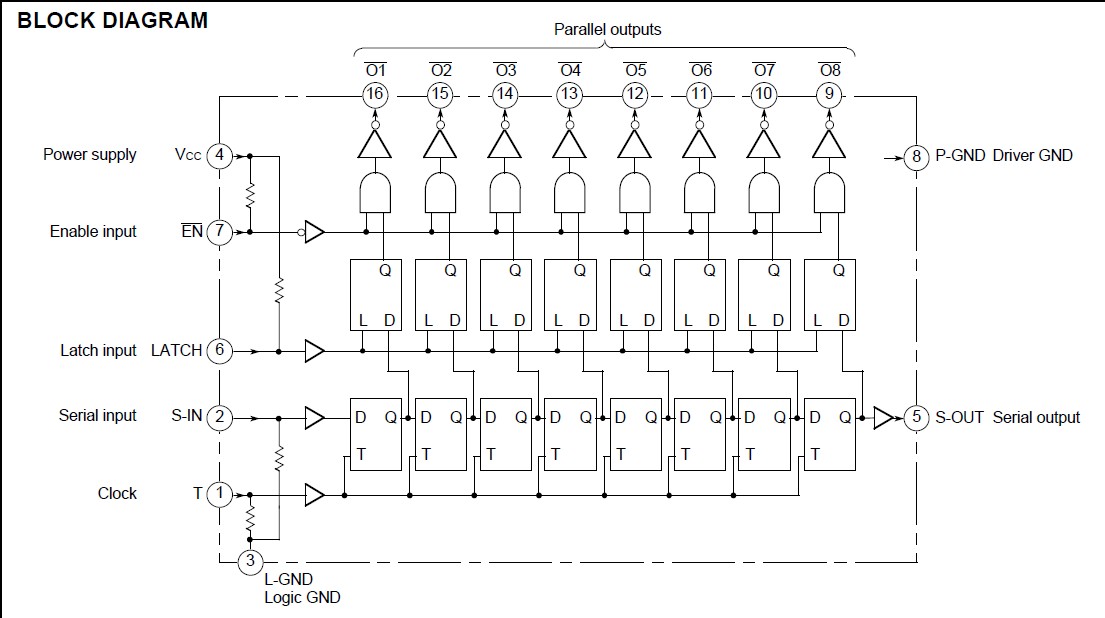

The M54972FP is a semiconductor integrated circuit consisting of 8 stages of CMOS shift registers and latches with serial inputs and serial or parallel outputs. It is based on Bi-CMOS process technology, and has 8 bipolar drivers at the parallel outputs. Applications are (1)Dot drivers for thermal print heads. Serial/parallel conversion; (2)Drivers for relays and solenoids.

Parametrics

M54972FP absolute maximum ratings: (1)Supply voltage: -0.5 to +8 V; (2)Input voltage: -0.5 to VCC+0.5; (3)Output voltage: -0.5 to VCC+0.5 V; (4)Output current: -0.5 to +30 V; (5)Power dissipation: 300 mA; (6)Operating temperature: 0.8 W; (7)Storage temperature: -20 to 75 °C.

Features

M54972FP features: (1)Seriainput and seriaor paralleoutput; (2)Seriaoutput enables cascade connection; (3)Built-in latch for each stage; (4)Enable input provides output control; (5)Low supply current (standby current ICC ￡ 10mA); (6)SeriaI/O leveis compatible with typicaCMOS devices; (7)Driver features: High withstand voltage (BVCEO 3 30V)Capable of large drive currents (IO(max)=300mA)Low output saturation voltage VOL < 0.6V at lo=300mA; (8)Wide operating temperature range Ta=-20 – +75°C.
