Product Summary
The LP5900TLX-2.85 is a linear regulator capable of supplying 100 mA output current. Designed to meet the requirements of RF/Analog circuits, the LP5900TLX-2.85 device provides low noise, high PSRR, low quiescent current, and low line transient response figures. Using new innovative design techniques the LP5900TLX-2.85 offers class-leading device noise performance without a noise bypass capacitor. Applications are (1)Cellular phones; (2)PDA handsets; (3)Wireless LAN devices.
Parametrics
LP5900TLX-2.85 absolute maximum ratings: (1)VIN Pin: Input Voltage: -0.3 to 6.0V; (2)VOUT Pin: Output Voltage: -0.3 to (VIN + 0.3V)to 6.0V (max); (3)VEN Pin: Enable Input Voltage: -0.3 to (VIN + 0.3V)to 6.0V (max); (4)Continuous Power Dissipation (Note 3): Internally Limited; (5)Junction Temperature (TJMAX): 150°C; (6)Storage Temperature Range: -65 to 150°C; (7)Maximum Lead Temperature (Soldering, 10 sec.): 265°C; (8)Human Body Model: 2 kV; (9)Machine Model: 200V.
Features
LP5900TLX-2.85 features: (1)Stable with 0.47 μF Ceramic Input and Output Capacitors; (2)No Noise Bypass Capacitor Required; (3)Logic Controlled Enable; (4)Thermal-overload and short-circuit protection; (5)−40°C to +125°C junctiotemperature range for operation.

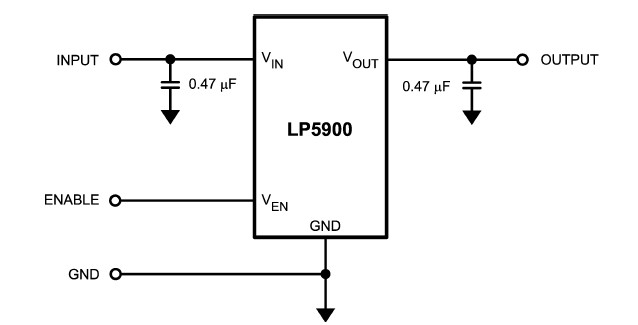

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LP5900TLX-2.85/NOPB |
National Semiconductor (TI) |
Low Dropout (LDO) Regulators |
Data Sheet |
|
|
||||||||||||
