LP2952IMX

LP2952IMX, micropower voltage regulator, 30V, 250 mA, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.41~0.41 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 243 :	0.41 / Piece

PartNumber:: LP2952IMX

Brand:: National Semiconductor - NS | Pack: SOIC | D/C: 97+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-04

From Other Seller

Part Number:LP2952IMX
US $0.41 - 0.41
Quantity:

piece

Product Summary

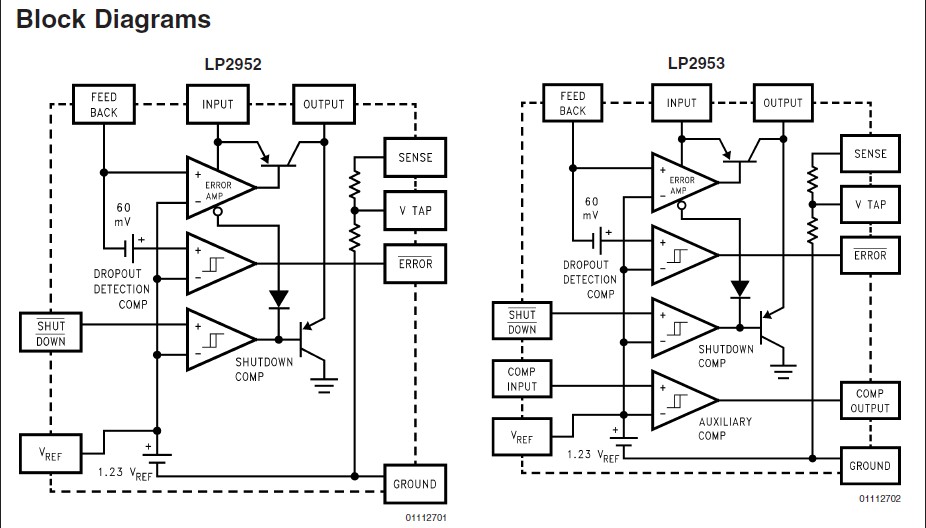

The lp2952imx is a micropower voltage regulator with very low quiescent current (130 μA typical at 1 mA load) and very low dropout voltage. The lp2952imx is ideally suited for battery-powered systems. Furthermore, the quiescent current increases only slightly at dropout, which prolongs battery life. Applications are (1)High-efficiency linear regulator; (2)Regulator with under-voltage shutdown; (3)Low dropout battery-powered regulator; (4)Snap-ON/Snap-OFF regulator.

Parametrics

lp2952imx absolute maximum ratings: (1)Input Supply Voltage: -20V to +30V; (2)Feedback Input Voltage (Note 3): -0.3V to +5V; (3)Comparator Input Voltage (Note 4): -0.3V to +30V; (4)Shutdown Input Voltage (Note 4): -0.3V to +30V; (5)Comparator Output Voltage (Note 4): -0.3V to +30V; (6)ESD Rating (Note 15): 2 kV.

Features

lp2952imx features: (1)Output voltage adjusts from 1.23V to 29V; (2)Guaranteed 250 mA output current; (3)Extremely low quiescent current; (4)Low dropout voltage; (5)Extremely tight line and load regulation; (6)Very low temperature coefficient; (7)Current and thermal limiting; (8)Reverse battery protection; (9)50 mA (typical)output pulldowcrowbar; (10)5V and 3.3V versions available.
