LM2902DR2

LM2902DR2, operational amplifier, 26 V, 0.8 mA, 2 mV, 2 nA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.11~0.11 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1959 :	0.11 / Piece

PartNumber:: LM2902DR2

Brand:: Motorola, Inc - MOTOROLA | Pack: SOP | D/C: 99+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-07

From Other Seller

Part Number:LM2902DR2
US $0.11 - 0.11
Quantity:

piece

Product Summary

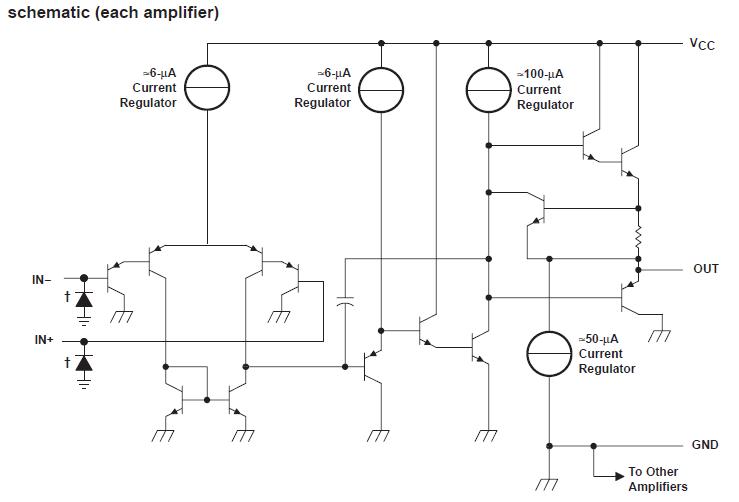

The LM2902DR2 is a quadruple operational amplifier. It consists of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies also is possible if the difference between the two supplies is 3 V to 26 V for the LM2902DR2, and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain of LM2902DR2 is independent of the magnitude of the supply voltage.

Parametrics

LM2902DR2 absolute maximum ratings: (1)Supply voltage, VCC: ±13 or 26 V; (2)Differential input voltage, VID: ±26 V; (3)Input voltage, VI (either input): -0.3 to 26 V; (4)Duration of output short circuit (one amplifier) to ground at (or below) TA = 25℃, VCC ≤ 15 V: Unlimited Unlimited; (5)Package thermal impedance: J package 15.05 ℃/W, W package 14.65 ℃/W; (6)Operating virtual junction temperature, TJ: 150 ℃; (7)Case temperature for 60 seconds FK package: 260 ℃; (8)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds J or W package: 300 ℃; (9)Storage temperature range, Tstg: -65 to 150 ℃.

Features

LM2902DR2 features: (1)2-kV ESD Protection for: LM224K, LM224KA, LM324K, LM324KA, LM2902K, LM2902KV, LM2902KAV; (2)Wide Supply Ranges: Single Supply: 3 V to 32 V (26 V for LM2902), Dual Supplies: ±1.5 V to ±16 V (±13 V for LM2902); (3)Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA Typ; (4)Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground; (5)Low Input Bias and Offset Parameters: Input Offset Voltage: 3 mV Typ, A Versions: 2 mV Typ, Input Offset Current: 2 nA Typ, Input Bias Current: 20 nA Typ, A Versions: 15 nA Typ.
