Product Summary

The LA75675M-S-TLM is an NTSC intercarrier VIF/SIF IC that adopts a semi-adjustment-free structure. In particular, it uses VCO adjustment to make AFT adjustment unnecessary and thus simplifies the overall adjustment process. A PLL-based technique is adopted for FM detection. The 5 V supply voltage provides compatibility with other multimedia systems. In addition it achieves high audio quality by incorporating a built-in buzz canceller that suppresses Nyquist buzz.

Parametrics

LA75675M-S-TLM absolute maximum ratings: (1)Maximum supply voltage: 6 V; (2)Circuit voltage: VCC V; (3)Circuit current I6: –3 mA; (4)Circuit current I10: –10 mA; (5)Circuit current I24: –2 mA; (6)Allowable power dissipation Pd max Ta 50°C, independent IC: 420 mW; (7)Allowable power dissipation Pd max: Mounted on a PCB: 720 mW; (8)Operating temperature: –20 to +70 °C; (9)Storage temperature: –55 to +150 °C.

Features

LA75675M-S-TLM features: (1)No AFT or SIF coils are used, thus eliminating adjustments; (2)Excellent audio performance due to the built-in buzz canceller; (3)VCC = 5 V and a low power dissipation of 250 mW.

Diagrams

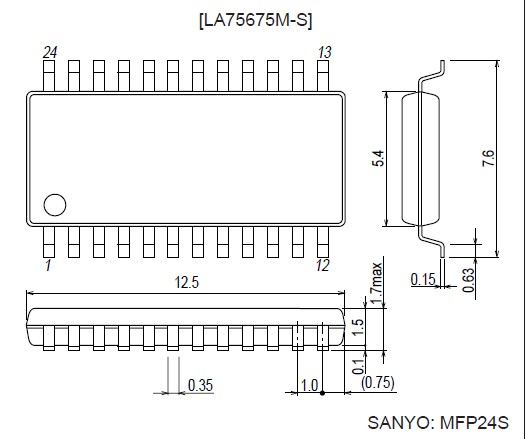

LA75675M-S-TLM pin connection
