Product Summary

The la4032p is a programmable superfast high density PLD. The la4032p offers a SuperFAST CPLD solution that is tested and qualified to the AEC-Q100 standard. The la4032p combines high speed and low power with the flexibility needed for ease of design. With its robust Global Routing Pool and Output Routing Pool, this family delivers excellent First- Time-Fit, timing predictability, routing, pin-out retention and density migration.

Parametrics

la4032p absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to 2.5V; (2)Output Supply Voltage (VCCO): -0.5 to 4.5V; (3)Input or I/O Tristate Voltage Applied4, 5: -0.5 to 5.5V; (4)Storage Temperature: -65 to 150°C; (5)Junction Temperature (Tj)with Power Applied: -55 to 150°C; (6)C1 I/O Capacitance3 VCCO = 3.3V, 2.5V, 1.8V: 8 pf.

Features

la4032p features: (1)f MAX = 168MHz maximum operating frequency; (2)t PD = 7.5ns propagation delay; (3)Up to four global clock pins with programmable clock polarity control; (4)Up to 80 PTs per output; (5)Enhanced macrocells with individual clock, reset, preset and clock enable controls; (6)Up to four global OE controls; (7)Hot-socketing; (8)Open-drain capability; (9)Input pull-up, pull-down or bus-keeper; (10)Programmable output slew rate; (11)3.3V PCI compatible; (12)IEEE 1149.1 boundary scan testable.

Diagrams

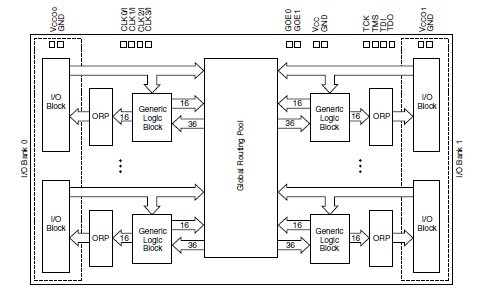

la4032p pin connection
