Product Summary

The l78l05acutr is a three-terminal positive voltage regulator. The l78l05acutr employs internal current limitingand thermal shutdown, making the the l78l05acutr essentially indestructible. If adequate heat-sink is provided,the can deliver up to 100mA output current. Applications of the The l78l05acutr include: local or on-card regulation for elimination of noise and distribution problems associated with single-point regulation.

Parametrics

l78l05acutr absolute maximum ratings: (1) DC Input Voltage VI: 30V (Vo=3.3 to 9V) , 35V (Vo=12 to 15V) , 40V (Vo=18 to 24V) ; (2) Output Current Io: 100mA; (3) Power Dissipation Ptot: Internally Limited; (4) Storage Temperature Range Tstg: -40 to +150°C; (5) Operating Junction Temperature Range Top: -40 to +125°C.

Features

l78l05acutr features: (1) output current up to 100mA; (2) ouput voltages of 3.3; 5; 6; 8; 9; 10; 12; 15; 18; 20; 24V; (3) thermal overload protection; (4) short circuit protection; (5) no external components are required; (6) available in either ±5% (AC) or ±10% (C) selection.

Diagrams

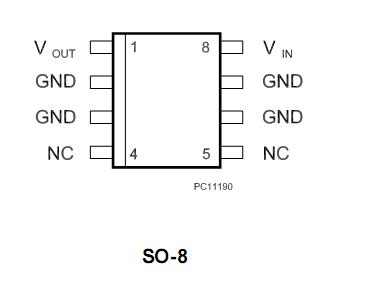

l78l05acutr Connection Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L78L05ACUTR
L78L05ACUTR
STMicroelectronics
Linear Regulators - Standard 5.0V 0.1A Positive
Data Sheet
0-1: $0.26
1-10: $0.19
10-100: $0.15
100-250: $0.13
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
L78L05ABZ
L78L05ABZ
STMicroelectronics
Linear Regulators - Standard 5.0V 0.1A Positive
Data Sheet
0-1: $0.29
1-10: $0.23
10-100: $0.16
100-250: $0.13
L78L05ABZ-AP
L78L05ABZ-AP
STMicroelectronics
Linear Regulators - Standard 5.0V 0.1A Positive
Data Sheet
0-3300: $0.12
L78L05ABZ-TR
L78L05ABZ-TR
STMicroelectronics
Linear Regulators - Standard 5.0V 0.1A Positive
Data Sheet
0-1: $0.40
1-10: $0.35
10-100: $0.26
100-250: $0.23
L78L05ACD
L78L05ACD
STMicroelectronics
Linear Regulators - Standard 5.0V 0.1A Positive
Data Sheet
0-1: $0.32
1-10: $0.25
10-100: $0.18
100-250: $0.15
L78L05ACUTR
L78L05ACUTR
STMicroelectronics
Linear Regulators - Standard 5.0V 0.1A Positive
Data Sheet
0-1: $0.26
1-10: $0.19
10-100: $0.15
100-250: $0.13
L78L05ACZTR
L78L05ACZTR
STMicroelectronics
Linear Regulators - Standard 5.0V 0.1A Positive
Data Sheet
0-1: $0.32
1-10: $0.23
10-100: $0.15
100-250: $0.11
