ICS502MT

ICS502MT, LOCO PLL clock multiplier, 7 V, 70 mA, 27 MHz, SOIC

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.30~1.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2500 :	1.30 / Piece

PartNumber:: ICS502MT

Brand:: Integrated Circuit Systems - ICS | Pack: SOIC | D/C: 99+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-04

From Other Seller

Part Number:ICS502MT
US $1.30 - 1.30
Quantity:

piece

Product Summary

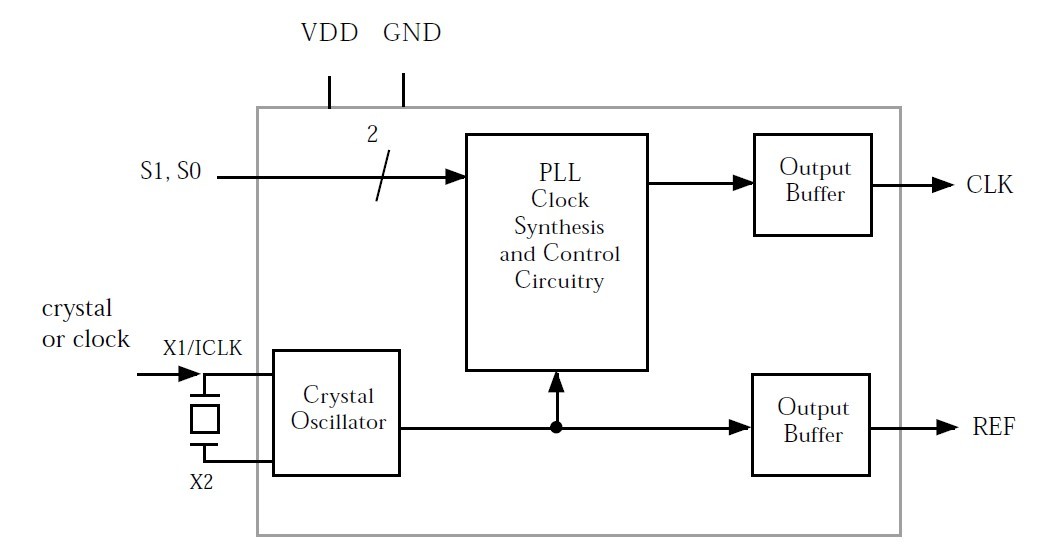

The ics502mt LOCO PLL clock multiplier is the most cost effective way to generate a high quality, high frequency clock output and a reference from a low frequency crystal or clock input. The name LOCO stands for LOw Cost Oscillator, as the ics502mt is designed to replace crystal oscillators in most electronic systems. Using Phase-Locked-Loop (PLL) techniques, the ics502mt uses a standard fundamental mode, inexpensive crystal to produce output clocks up to 160 MHz.

Parametrics

ics502mt absolute maximum ratings: (1)Supply Voltage, VDD Referenced to GND: 7 V; (2)Inputs Referenced to GND: -0.5 to VDD+0.5 V; (3)Clock Output Referenced to GND: -0.5 to VDD+0.5 V; (4)Ambient Operating Temperature: 0 to 70°C; (5)Soldering Temperature Max of 10 seconds: 260°C; (6)Storage temperature: -65 to 150°C; (7)IDD Operating Supply Current, 20 MHz crystal No Load, 100MHz: 20 mA; (8)Short Circuit Current CLK output: ±70 mA; (9)Input Capacitance, S1, S0 Pins 6, 7: 4 pF; (10)Input Frequency, crystal input: 5 to 27 MHz; (11)Input Frequency, clock input: 2 to 50 MHz.

Features

ics502mt features: (1)Packaged as 8 pin SOIC or die; (2)ICS lowest cost PLL clock plus reference; (3)Zero ppm multiplication error; (4)Easy to cascade with other 5xx series; (5)Input crystal frequency of 5 - 27 MHz; (6)Input clock frequency of 2 - 50 MHz; (7)Output clock frequencies up to 160 MHz; (8)Low jitter - 50 ps one sigma; (9)Compatible with all popular CPUs; (10)Duty cycle of 45/55 up to 160 MHz; (11)Operating voltages of 3.0 to 5.5V; (12)Industrial temperature version available; (13)25mA drive capability at TTL levels; (14)Advanced, low power CMOS process.
