Product Summary
The HN4C06J-GR is an Audio Frequency General Purpose Amplifier.
Parametrics
HN4C06J-GR absolute maximum ratings: (1)Collector-base voltage VCBO: 120V; (2)Collector-emitter voltage VCEO: 120V; (3)Emitter-base voltage VEBO: 5V; (4)Collector current IC: 100mA; (5)Base current IB: 20mA; (6)Collector power dissipation PC*: 300mW; (7)Junction temperature Tj: 150℃; (8)Storage temperature range Tstg: -55 to 150℃.
Features
HN4C06J-GR features: (1)High voltage : VCEO = 120V; (2)High hFE : hFE = 200 to 700; (3)Excellent hFE linearity : hFE (IC = 0.1mA) / hFE (IC = 2mA) = 0.95 (typ.); (4)Low noise : NF = 1dB(typ.).

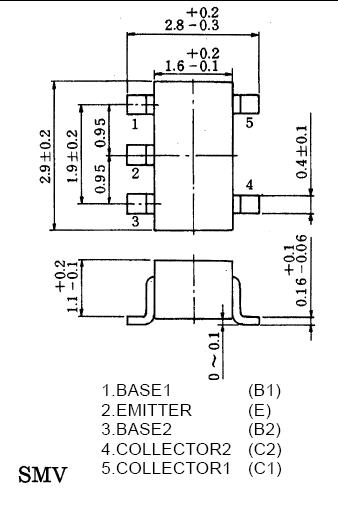

Diagrams
