HIN207ECB

HIN207ECB, RS-232 Transmitters/Receivers, 5 V, 15 kV, 230 kbits/s, 5 mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.73~0.73 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 200 :	0.73 / Piece

PartNumber:: HIN207ECB

Brand:: Elantec Semiconductor - Intersil | Pack: SOP | D/C: 00+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-07

From Other Seller

Part Number:HIN207ECB
US $0.73 - 0.73
Quantity:

piece

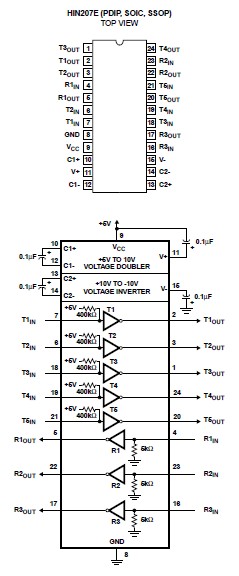

Product Summary

The HIN207ECB is a +/-15kV, ESD-Protected, +5V Powered, RS-232 Transmitters/Receivers. Application is any system requiring high-speed RS-232 communications port : (1)Computer Portable, Mainframe, Laptop; (2)Peripheral Printers and Terminals; (3)Instrumentation, UPS; (4)Modems, ISDN Terminal Adaptors.

Parametrics

HIN207ECB absolute maximum ratings: (1)VCC to Ground: (GND -0.3V)< VCC < 6V; (2)V+ to Ground: (VCC -0.3V)< V+ < 12V; (3)V- to Ground: -12V < V- < (GND +0.3V); (4)Input Voltages TIN: (V- -0.3V)< VIN < (V+ +0.3V); (5)Input Voltages RIN: ±30V; (6)Output Voltages TOUT: (V- -0.3V)< VTXOUT < (V+ +0.3V); (7)Output Voltages ROUT: (GND -0.3V)< VRXOUT < (V+ +0.3V); (8)Short Circuit Duration TOUT: Continuous; (9)Short Circuit Duration ROUT: Continuous; (10)ESD Classification: See Specification Table.

Features

HIN207ECB features: (1)High Speed ISDN Compatible: 230kbits/s; (2)ESD Protection for RS-232 I/O Pins to ±15kV (IEC1000); (3)Meets All RS-232E and V.28 Specifications; (4)Requires Only 0.1μF or Greater External Capacitors HIN205E and HIN235E Require No External Capacitors); (5)Two Receivers Active in Shutdown Mode (HIN213E); (6)Requires Only Single +5V Power Supply; (7)Onboard Voltage Doubler/Inverter; (8)Low Power Consumption (Typ): 5mA; (9)Low Power Shutdown Function (Typ): 1μA; (10)Three-State TTL/CMOS Receiver Outputs.
