Product Summary
The HIN202CB is a RS-232 transmitter/receiver interface circuit meets all ElA RS-232E and V.28 specification, and is particularly suited for those applications where ±12V is not available. It requires a single +5V power supply and features onboard charge pump voltage converters which generate +10V and -10V supplies from the 5V supply. The HIN202CB offers a wide variety of RS-232 transmitter/receiver combinations to accommodate various applications (see Selection Table). The drivers feature true TTL/CMOS input compatibility, slew rate-limited output, and 300Ω power-off source impedance. The HIN202CB can handle up to ±30V input, and have a 3kΩ to 7kΩ input impedance. The HIN202CB also features hysteresis to greatly improve noise rejection.
Parametrics
HIN202CB absolute maximum ratings: (1)VCC to Ground: (GND -0.3V)
Features
HIN202CB features: (1)Meets All RS-232E and V-28 Specifications; (2)HIN203 and HIN205 Require No External Capacitors; (3)Requires Only 0.1μF or Greater External Capacitors; (4)High Data Rate: 120kbit/s; (5)Two Receivers Active in Shutdown Mode (HIN213); (6)Requires Only Single +5V Power Supply; (7)Onboard Voltage Doubler/Inverter; (8)Low Power Consumption (Typ): 5mA; (9)Low Power Shutdown Function (Typ): 1μA; (10)Three-State TTL/CMOS Receiver Outputs.

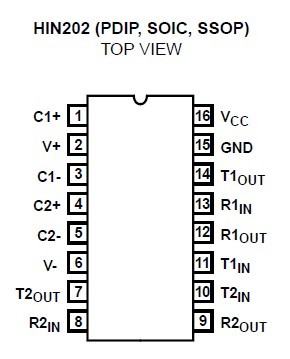

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HIN202CB |
IC TXRX RS-232 5V 16-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||
HIN202CBN |
IC TXRX RS-232 5V 16-SOIC |
Data Sheet |
|
|
||||||||||||||
HIN202CBNZ |
Intersil |
RS-232 Interface IC RS232 5V 2D/2R COM |
Data Sheet |
|
|
|||||||||||||
HIN202CBNZ-T |
Intersil |
RS-232 Interface IC RS232 5V 2D/2R 16N COM |
Data Sheet |
|
|
|||||||||||||
HIN202CBN-T |
IC 2DRVR/2RCVR RS232 5V 16-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||
HIN202CB-T |
IC 2DRVR/2RCVR RS232 5V 16-SOIC |
Data Sheet |
Negotiable |
|
||||||||||||||
HIN202CBZ-T |
Intersil |
RS-232 Interface IC RS232 5V 2D/2R COM |
Data Sheet |
|
|
|||||||||||||
HIN202CBZ |
Intersil |
RS-232 Interface IC RS232 5V 2D/2R COM |
Data Sheet |
|
|
