Product Summary
The HI5741BIB-ND is a 14-bit, 100MSPS, D/A converter which is implemented in the Intersil BiCMOS 10V (HBC-10) process. Operating from +5V and -5.2V, the converter provides 20.48mA of full scale output current and includes an input data register and bandgap voltage reference. Applications are (1)Cellular Base Stations; (2)Wireless Communications; (3)Direct Digital Frequency Synthesis; (4)Signal Reconstruction; (5)Test Equipment; (6)High Resolution Imaging Systems; (7)Arbitrary Waveform Generators.
Parametrics
HI5741BIB-ND absolute maximum ratings: (1)Digital Supply Voltage VCC to DGND: +5.5V; (2)Negative Digital Supply Voltage DVEE to DGND: -5.5V; (3)Negative Analog Supply Voltage AVEE to AGND, ARTN: -5.5V; (4)Digital Input Voltages (D13-D0, CLK)to DGND: DVCC to -0.5V; (5)Internal Reference Output Current: ±2.5mA; (6)Voltage from CTRL AMP IN to AVEE: 2.5V to 0V; (7)Control Amplifier Output Current: ±2.5mA; (8)Reference Input Voltage Range: -3.7V to AVEE; (9)Analog Output Current (IOUT): 30mA.
Features
HI5741BIB-ND features: (1)Throughput Rate: 100MSPS; (2)Low Power: 650mW; (3)Integral Linearity Error: 1 LSB; (4)Low Glitch Energy: 1pV-s; (5)TTL/CMOS Compatible Inputs; (6)Improved Hold Time: 0.25ns; (7)Excellent Spurious Free Dynamic Range; (8)Pb-Free Plus Anneal Available (RoHS Compliant).

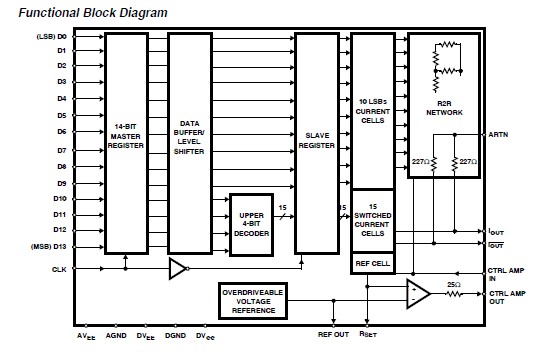

Diagrams
