Product Summary
The hd74lv2g32ause is a dual two-input OR gate in a 8 pin package. Low voltage and high-speed operation is suitable for the battery powered products (e.g., notebook computers), and the low power consumption extends the battery life.
Parametrics
hd74lv2g32ause absolute maximum ratings: (1)Supply voltage range: VCC: –0.5 to 7.0 V; (2)Input voltage range : VI: –0.5 to 7.0 V; (3)Output voltage range: –0.5 to 7.0 V or –0.5 to VCC + 0.5V; (4)Input clamp current: IIK: –20 mA; (5)Output clamp current: IOK: ±50 mA; (6)Continuous output current: IO: ±25 mA; (7)Continuous current through VCC or GND: ICC or IGND: ±50 mA; (8)Maximum power dissipation at Ta = 25°C (in still air) : PT: 200 mW; (9)Storage temperature: Tstg: –65 to 150 °C.
Features
hd74lv2g32ause features: (1)The basic gate function is lined up as Renesas uni logic series; (2)Supplied on emboss taping for high-speed automatic mounting; (3)Electrical characteristics equivalent to the HD74LV32A, Supply voltage range : 1.65 to 5.5 V, Operating temperature range : –40 to +85°C; (4)All inputs VIH (Max.) = 5.5 V (@VCC = 0 V to 5.5 V); (5)All outputs VO (Max.) = 5.5 V (@VCC = 0 V); (6)Output current ±6 mA (@VCC = 3.0 V to 3.6 V), ±12 mA (@VCC = 4.5 V to 5.5 V); (7)All the logical input has hysteresis voltage for the slow transition; (8)Ordering Information.

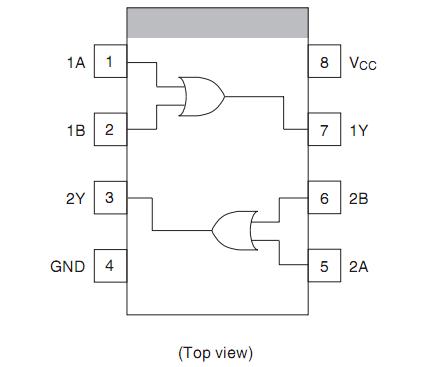

Diagrams
