AD8011ANZ

AD8011ANZ, high-speed amplifier, 12.6 V, 1 mA, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~4.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	4.00 / Piece

PartNumber:: AD8011ANZ

Brand:: Analog Devices - ADI | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-25

From Other Seller

Part Number:AD8011ANZ
US $4.00 - 4.00
Quantity:

piece

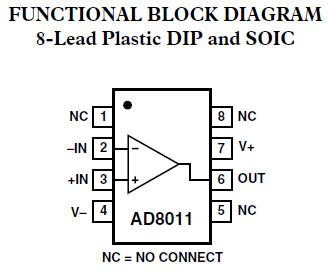

Product Summary

The AD8011ANZ is a very low power, high-speed amplifier designed to operate on +5 V or ±5 V supplies. With wide bandwidth, low distortion and low power, the AD8011ANZ is ideal as a general-purpose amplifier. It also can be used to replace high-speed amplifiers consuming more power. The AD8011ANZ is a current feedback amplifier and features gain flatness of 0.1 dB to 25 MHz while offering differential gain and phase error of 0.02% and 0.06° on a single +5 V supply.The applications of the AD8011ANZ include Power Sensitive, High Speed Systems, Video Switchers, Distribution Amplifiers, A-to-D Driver, Professional Cameras, CCD Imaging Systems, Ultrasound Equipment (Multichannel).

Parametrics

AD8011ANZ absolute maximum ratings: (1)Supply Voltage: 12.6 V; (2)Internal Power Dissipation2, Plastic DIP Package (N): Observe Derating Curves; Small Outline Package (R): Observe Derating Curves; (3)Input Voltage (Common Mode): ±VS; (4)Differential Input Voltage: ±2.5 V; (5)Output Short Circuit Duration: Observe Power Derating Curves; (6)Storage Temperature Range (N, R): -65℃ to +125℃; (7)Operating Temperature Range (A Grade): 40℃ to +85℃; (8)Lead Temperature Range (Soldering 10 sec): +300℃.

Features

AD8011ANZ features: (1)Easy to Use; (2)Low Power, 1 mA Power Supply Current (5 mW on +5 VS); (3)High Speed and Fast Settling on +5 V, 300 MHz, –3 dB Bandwidth (G = +1); 180 MHz, –3 dB Bandwidth (G = +2); 2000 V/μs Slew Rate; 29 ns Settling Time to 0.1%; (4)Good Video Specifications (RL = 1 k, G = +2), Gain Flatness 0.1 dB to 25 MHz; 0.02% Differential Gain Error; 0.06° Differential Phase Error; (5)Low Distortion, –70 dBc Worst Harmonic @ 5 MHz; –62 dBc Worst Harmonic @ 20 MHz; (6)Single Supply Operation, Fully Specified for +5 V Supply.
