Product Summary

The ha17431fpa is temperature-compensated variable shunt regulator. The main application of the ha17431fpa is in voltage regulators that provide a variable output voltage. The on-chip high-precision reference voltage source can provide ±1% accuracy in the V versions, which have a VKA max of 16 volts. The ha17431fpa, which is provided in the MPAK-5 package, is designed for use in switching mode power supplies. It provides a built-in photocoupler bypass resistor for the PS pin, and an error amplifier can be easily constructed on the supply side.

Parametrics

ha17431fpa absolute maximum ratings: (1)Cathode voltage VKA: 16 V; (2)Continuous cathode current IK: –50 to +50 mA; (3)Reference input current Iref : –0.05 to +10 mA; (4)Power dissipation PT: 500 mW; (5)Operating temperature range Topr: –40 to +85 °C; (6)Storage temperature Tstg: –55 to +150 °C.

Features

ha17431fpa features: (1)The V versions provide 2.500 V ±1% at Ta = 25°C; (2)The HA17431VLP includes a photocoupler bypass resistor (2 kΩ); (3)The reference voltage has a low temperature coefficient; (4)The MPAK-5(5-pin), MPAK(3-pin)and UPAK miniature packages are optimal for use on high mounting density circuit boards; (5)Car use is provided.

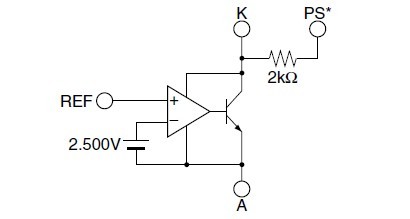

Diagrams

ha17431fpa pin connection
