FAN2011MPX

DC-DC converter, -0.3 to 7 V, 6-lead MLP, Fairchild Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.50~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 747 :	2.50 / Piece

PartNumber:: FAN2011MPX

Brand:: Fairchild Semiconductor - Fairchild | Pack: | D/C: 06+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-03

From Other Seller

Part Number:FAN2011MPX
US $2.50 - 2.50
Quantity:

piece

Product Summary

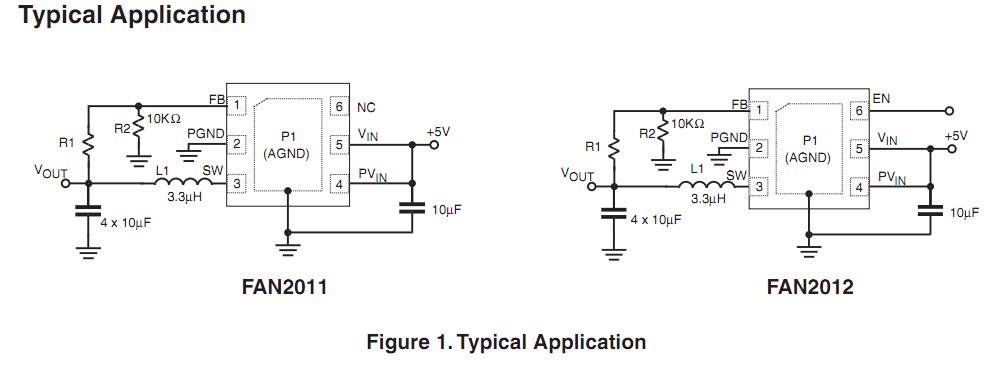

The fan2011mpx is a high-efﬁciency, low-noise synchronous PWM current mode DC-DC converter, designed for low voltage applications. It provides up to 1.5A continuous load current from the 4.5V to 5.5V input. The output voltage is adjust-able over a wide range of 0.8V to VIN by means of an external voltage divider. The applications of the fan2011mpx are (1)Hard Disk Drive; (2)Set Top Box; (3)Point of Load Power; (4)Notebook Computers; (5)Communications Equipment.

Parametrics

fan2011mpx absolute maximum ratings: (1)VIN: -0.3 to 7 V; (2)PVIN and any other pin: -0.3 to VIN V; (3)Thermal Resistance-Junction to Tab (θJC), 3mmx3mm 6-lead MLP: 8 °C/W; (4)Lead Soldering Temperature (10 seconds): 260 °C; (5)Storage Temperature: -65 to 150 °C; (6)Junction Temperature: -40 to 150 °C; (7)Electrostatic Discharge (ESD) Protection Level , HBM: 4 kV.

Features

fan2011mpx features: (1)95% Ef?ciency, Synchronous Operation; (2)Adjustable Output Voltage from 0.8V to VIN; (3)4.5V to 5.5V Input Voltage Range; (4)Up to 1.5A Output Current; (5)Fixed Frequency 1.3 MHz PWM Operation; (6)100% Duty Cycle Low Dropout Operation; (7)Soft Start; (8)Excellent Load Transient Response; (9)3x3mm 6-lead MLP Package.
