Product Summary

The EZ1585CM-1.5TR is a 4.6 Amp positive voltage regulator. Applications are (1)Printer and plotter supplies; (2)Instrumentation; (3)Medical equipment; (4)Microcontroller systems; (5)Telecommunication systems; (6)Motherboards; (7)Switching supply post regulation.

Parametrics

EZ1585CM-1.5TR absolute maximum ratings: (1)Input Supply Voltage: 7 V; (2)Power Dissipation: Internally Limited W; (3)Thermal Resistance Junction to Case TO-220: 3 °C/W; (4)Thermal Resistance Junction to Case TO-263: 3 °C/W; (5)Thermal Resistance Junction to Ambient TO-220: 50 °C/W; (6)Thermal Resistance Junction to Ambient TO-263: 60 °C/W; (7)Operating Ambient Temperature Range EZ1585C: 0 to 70 °C; (8)Operating Junction Temperature Range EZ1585C: 0 to 125 °C; (9)Storage Temperature Range: -65 to 150 °C; (10)Lead Temperature (Soldering)10 Sec: 300 °C; (11)ESD Rating (Human Body Model): 2 kV.

Features

EZ1585CM-1.5TR features: (1)Low dropout voltage: 1.3V max. for EZ1585C and 1.4V max. for EZ1585I; (2)Full current rating over line and temperature; (3)Fast transient response; (4)±2% total output regulation over line, load and temperature; (5)Adjust pin current max 90μA over temperature; (6)Fixed/adjustable output voltage (EZ1585C); (7)Line regulation typically 0.015%; (8)Load regulation typically 0.05%; (9)Industrial temperature range (EZ1585I); (10)TO-220 and TO-263 packages. Available in RoHS compliant package.

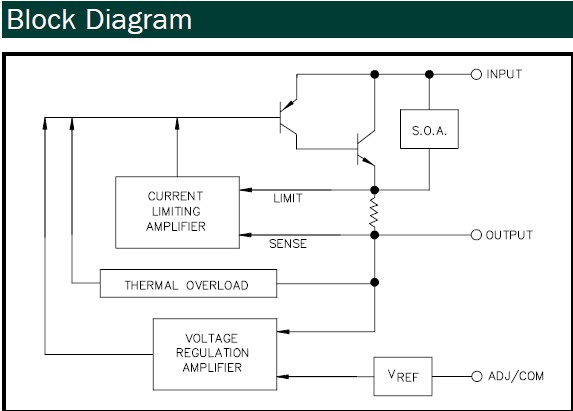

Diagrams

EZ1585CM-1.5TR pin connection
