DS90CF561MTDX

DS90CF561MTDX, FPD, 6 V, 1.98 W, 290 mV, TSSOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.61~2.61 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	2.61 / Piece

PartNumber:: DS90CF561MTDX

Brand:: National Semiconductor - NS | Pack: TSSOP | D/C: 98+

Availability:: Supply Ability: 120/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-11

From Other Seller

Part Number:DS90CF561MTDX
US $2.61 - 2.61
Quantity:

piece

Product Summary

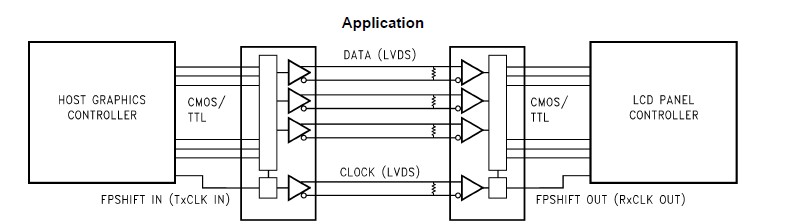

The DS90CF561MTDX is a LVDS 18-bit color flat panel display (FPD) link. The DS90CF561MTDX transmitter converts 21 bits of CMOS/TTL data into three LVDS (Low Voltage Differential Signaling) data streams. A phase-locked transmit clock is transmitted in parallel with the data streams over a fourth LVDS link. Every cycle of the transmit clock 21 bits of input data are sampled and transmitted. The DS90CF561MTDX receiver converts the LVDS data streams back into 21 bits of CMOS/TTL data.

Parametrics

DS90CF561MTDX absolute maximum ratings: (1)Supply Voltage (VCC): -0.3V to +6V; (2)CMOS/TTL Input Voltage: -0.3V to (VCC + 0.3V); (3)CMOS/TTL Ouput Voltage: -0.3V to (VCC + 0.3V); (4)LVDS Receiver Input Voltage: -0.3V to (VCC + 0.3V); (5)LVDS Driver Output Voltage: -0.3V to (VCC + 0.3V); (6)LVDS Output Short Circuit Duration: continuous; (7)Junction Temperature: +150°C; (8)Storage Temperature Range: -65°C to +150°C; (9)Lead Temperature (Soldering, 4 sec.): +260°C; (10)Maximum Power Dissipation @ +25°C MTD48 (TSSOP)Package: 1.98W; (11)Package Derating: 16 mW/°C above +25°C.

Features

DS90CF561MTDX features: (1)Up to 105 Megabyte/sec bandwidth; (2)Narrow bus reduces cable size and cost; (3)290 mV swing LVDS devices for low EMI; (4)Low power CMOS design; (5)Power dowmode; (6)PLL requires no external components; (7)Low profile 48-lead TSSOP package; (8)Falling edge data strobe; (9)Compatible with TIA/EIA-644 LVDS standard.
