Product Summary
The DM74ALS245AWMX is an octal 3-state bus transceiver. The DM74ALS245AWMX contains 8 pairsof 3-STATE logic elements configured as octal bus transceiver. The DM74ALS245AWMX is designed for use in memory, microprocessor systems and in asynchronous bidirectional data buses.
Parametrics
DM74ALS245AWMX absolute maximum ratings: (1) Supply Voltage: 7V; (2) Input Voltage, Control Inputs : 7V; (3) I/O Ports: 5.5V; (4) Operating Free Air Temperature Range: 0 to +70°C; (5) Storage Temperature Range: -65 to +150°C.
Features
DM74ALS245AWMX features: (1) (1) Advanced oxide-isolated, ion-implanted Schottky TTL process; (2) Non-inverting logic output; (3) Glitch free bus during power up and down; (4) 3-STATE outputs independently controlled on A and B buses; (5) Low output impedance to drive terminated transmission lines to 133Ω； (6) Switching response specified into 500Ω /50 pF; (7) Specified to interface with CMOS at VOH=Vcc-2V; (8) PNP inputs to reduce input loading; (9) Switching specifications guaranteed over full temperature and VCC range.

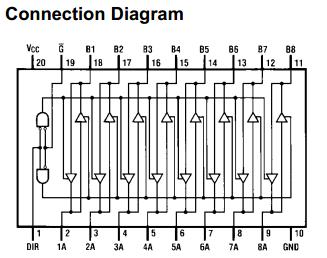

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DM74ALS245AWMX |
Fairchild Semiconductor |
Bus Transceivers Oct 3-STATE Bus Tran |
Data Sheet |
