Product Summary

The DG201HSDY is an improved monolithic device containing four independent analog switches. It is designed to provide high speed, low error switching of analog signals. Combining low on-resistance (25 Ω) with high speed (tON: 38 ns), the DG201HSDY is ideally suited for high speed data acquisition requirements. Applications are (1)Data Acquisition; (2)Hi-Rel Systems; (3)Sample-and-Hold Circuits; (4)Communication Systems; (5)Automatic Test Equipment; (6)Integrator Reset Circuits; (7)Choppers; (8)Gain Switching; (9)Avionics.

Parametrics

DG201HSDY absolute maximum ratings: (1)V+ to V–: 44 V; (2)GND to V–: 25 V; (3)Digital Inputsa VS, VD: (V–)–4 V to (V+)+4 V or 30 mA, whichever occurs first; (4)Continuous Current (Any Terminal): 30 mA; (5)Current, S or D (Pulsed 1 ms, 10% duty cycle): 100 mA; (6)Storage Temperature (A Suffix): –65 to 150 ℃; (7)Storage Temperature (D Suffix): –65 to 125 ℃; (8)Power Dissipation (Package)b 16-Pin Plastic DIPc: 470 m; (9)16-Pin CerDIPd: 900 mW; (10)16-Pin Narrow Body SOIC and TSSOPe: 600 mW; (11)LCC-20d: 900 mW.

Features

DG201HSDY features: (1)Fast Switching—tON: 38 ns; (2)Low On-Resistance: 25 Ω; (3)Low Leakage: 100 pA; (4)Low Charge Injection; (5)TTL/CMOS Logic Compatible; (6)Single Supply Compatibility; (7)High Current Rating: –30 mA.

Diagrams

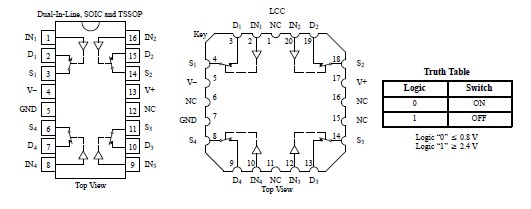

DG201HSDY pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
DG201HSDY
DG201HSDY
Vishay/Siliconix
Analog Switch ICs Quad SPST Switch
Data Sheet
0-290: $2.67
290-500: $2.45
500-1000: $2.38
1000-2000: $2.17
DG201HSDY-E3
DG201HSDY-E3
Vishay/Siliconix
Analog Switch ICs Quad SPST Switch
Data Sheet
0-1: $1.49
1-10: $1.36
10-100: $1.19
100-250: $1.07
DG201HSDY-T1-E3
DG201HSDY-T1-E3
Vishay/Siliconix
Analog Switch ICs Quad SPST Switch
Data Sheet
0-1: $0.66
1-10: $0.60
10-50: $0.57
50-100: $0.53
DG201HSDY-T1
DG201HSDY-T1
Vishay/Siliconix
Analog Switch ICs Quad SPST Switch
Data Sheet
0-1480: $2.61
1480-2500: $2.00
