Product Summary

The cs53l32a-kzr is a highly integrated, 24-bit, 96 kHz audio ADC providing stereo analog-to-digital converters using delta-sigma conversion techniques. The cs53l32a-kzr includes volume control and line level inputs in a 20-pin TSSOP package. These features are ideal for portable MP3 players, MD recorders/players, digital camcorders, PDAs, set-top boxes, and other portable systems that require extremely low power consumption in a minimum of space.

Parametrics

cs53l32a-kzr absolute maximum ratings: (1)DC Power Supplies: Positive Analog: -0.3 to 4.0 V; (2)Input Current, Any Pin Except Supplies Iin: ±10 mA; (3)Digital Input Voltage VIND: -0.3 to VL+0.4 V; (4)Ambient Operating Temperature (power applied)TA: -55 to 125 °C; (5)Storage Temperature Tstg: -65 to 150 °C.

Features

cs53l32a-kzr features: (1)20-Pin TSSOP package; (2)1.8 V to 3.3 V supply; (3)24-bit conversion / 96 kHz sample rate; (4)98 dB dynamic range at 3 V supply; (5)Low power consumption: 11 mW at 1.8 V; (6)Up to 32 dB gain; (7)Stereo inputs; (8)Digital volume control; (9)2: 1 Input mux.

Diagrams

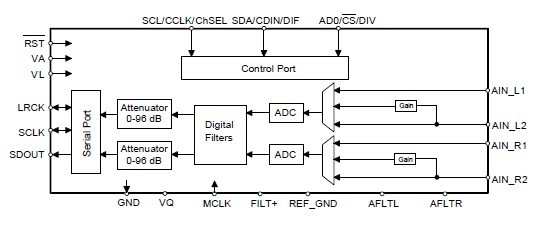

cs53l32a-kzr pin connection
