Product Summary

The CA3100T is a large signal wideband, high speed operational amplifier which has a unity gain cross over frequency (fT) of approximately 38MHz and an open loop, 3dB corner frequency of approximately 110kHz. It can operate at a total supply voltage of from 14V to 36V (±7V to ±18V when using split supplies) and can provide at least 18VP-P and 30mAP-P at the output when operating from ±15V supplies. The CA3100T can be compensated with a single external capacitor and has DC offset adjust terminals for those applications requiring offset null.

Parametrics

CA3100T absolute maximum ratings: (1)Supply Voltage (Between V+ and V- Terminals): 36V; (2)Differential Input Voltage: 12V; (3)Input Voltage to Ground: V+ to VOffset; (4)Terminal to V- Terminal Voltage: ±0.5V; (5)Output Current: 50mA.

Features

CA3100T features: (1)High Open Loop Gain at Video Frequencies 42dB (Typ) at 1MHz; (2)Unity Gain Crossover Frequency (fT) 38MHz (Typ); (3)Full Power Bandwidth; (4)VO= 18VP-P 1.2MHz (Typ); (5)Slew Rate. 20dB Amplifier 70V/ms (Typ). Unity Gain Amplifier 25V/ms (Typ); (6)Settling Time 0.6ms (Typ); (7)Output Current ±5mA (Min); (8)Single Capacitor Compensation; (9)Offset Null Terminals.

Diagrams

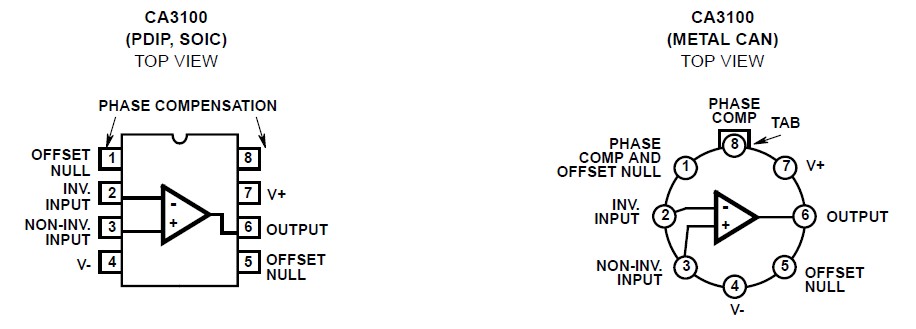

ca3100t pin connection
