Product Summary
The BU2040F-T1 is an isc silicon NPN power transistor. Applications is designed for use in large screen color deflection circuits.
Parametrics
BU2040F-T1 absolute maximum ratings: (1)Collector-Emitter Voltage: 1300 V; (2)Collector-Emitter Voltage: 600 V; (3)Emitter-Base Voltage: 5 V; (4)Collector Current-Continuous: 2.5 A; (5)Collector Current-Peak: 3.0 A; (6)Base Current-Continuous: 1.0 A; (7)Collector Power Dissipation @TC=25℃: 36 W; (8)Junction Temperature: 115 ℃; (9)Storage Temperature: -65 to 115 ℃.

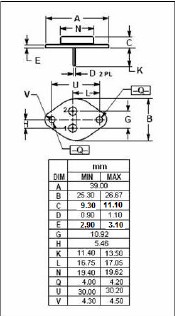

Diagrams
