Product Summary

The AM29LV800BB-70EC is an 8 Mbit, 3.0 volt-only Flash memory organized as 1,048,576 bytes or 524,288 words. The device is offered in 48-ball FBGA, 44-pin SO, and 48-pin TSOP packages. The AM29LV800BB-70EC is also available in Known Good Die (KGD) form. For more information, refer to publication number 21536. The word-wide data (x16) appears on DQ15–DQ0; the byte-wide (x8) data appears on DQ7–DQ0. This device requires only a single, 3.0 volt VCC supply to perform read, program, and erase operations. A standard EPROM programmer can also be used to program and erase the device.

Parametrics

AM29LV800BB-70EC absolute maximum ratings: (1)Storage Temperature Plastic Packages: –65°C to +150°C; (2)Ambient Temperature with Power Applied: –65°C to +125°C; (3)Voltage with Respect to Ground VCC (Note 1): –0.5 V to +4.0 V; (4)Voltage with Respect to Ground: A9, OE#, and; (5)RESET# (Note 2): –0.5 V to +12.5 V; (6)RESET# (Note 2): All other pins (Note 1)–0.5 V to VCC+0.5 V; (7)Output Short Circuit Current (Note 3): 200 mA.

Features

AM29LV800BB-70EC features: (1)200 nA Automatic Sleep mode current; (2)200 nA standby mode current; (3)7 mA read current; (4)15 mA program/e+5rase current; (5)One 16 Kbyte, two 8 Kbyte, one 32 Kbyte, and fifteen 64 Kbyte sectors (byte mode); (6)One 8 Kword, two 4 Kword, one 16 Kword, and fifteen 32 Kword sectors (word mode); (7)Supports full chip erase; (8)Embedded Erase algorithm automatically preprograms and erases the entire chip or any combination of designated sectors; (9)Embedded Program algorithm automatically writes and verifies data at specified addresses.

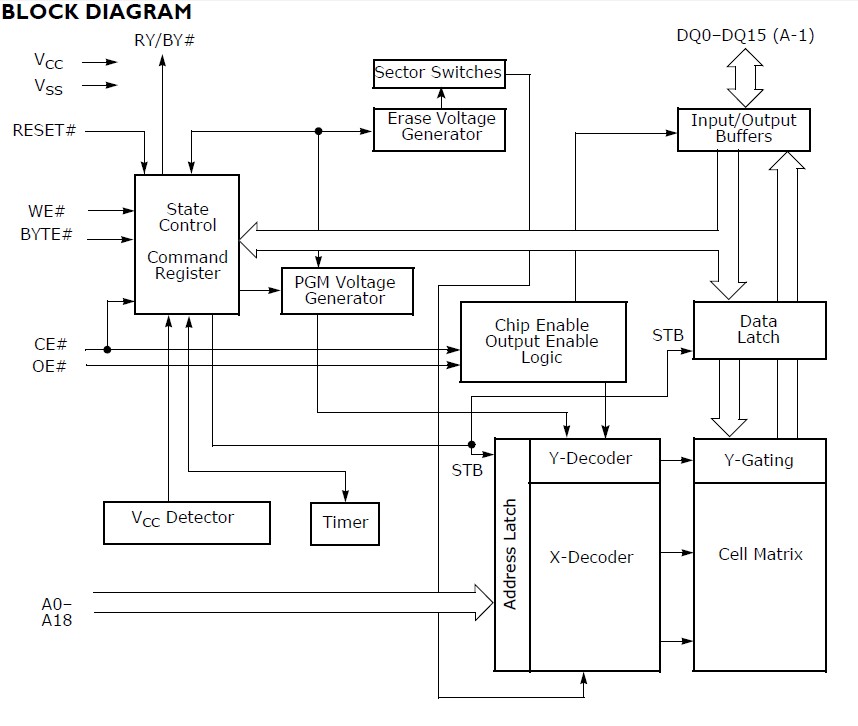

Diagrams

AM29LV800BB-70EC pin connection
