Product Summary
The aic1117a-33py is a low dropout three terminal regulator with 1A output current capability. The output voltage of the aic1117a-33py is adjustable with the use of a resistor divider or fixed 2.85V, 3.3V, 5V. Applications of the aic1117a-33py include: Post Regulator for Switching Supply, Active SCSI Termination, Battery Chargers, Constant-Current Regulators and Motherboard Clock Supplies.
Parametrics
aic1117a-33py absolute maximum ratings: (1) VIN pin to ADJ/GND pin: 7V; (2) Operating Junction Temperature Range: 0 to 125°C; (3) Power Dissipation: Internally Limited; (4) Storage Temperature Range: -65 to 150°C; (5) Lead Temperature (Soldering) 10 sec.: 260°C.
Features
aic1117a-33py features: (1) Dropout Voltage 1.3V at 1A Output Current; (2)Fast Transient Response; (3) Line Regulation typically at 0.015%; (4) Load Regulation typically at 0.1%; (5) Internal Thermal and Current Limiting; (6) Adjustable Output Voltage or Fixed 2.85V, 3.3V, 5V; (7) Standard 3-Pin Power Packages.

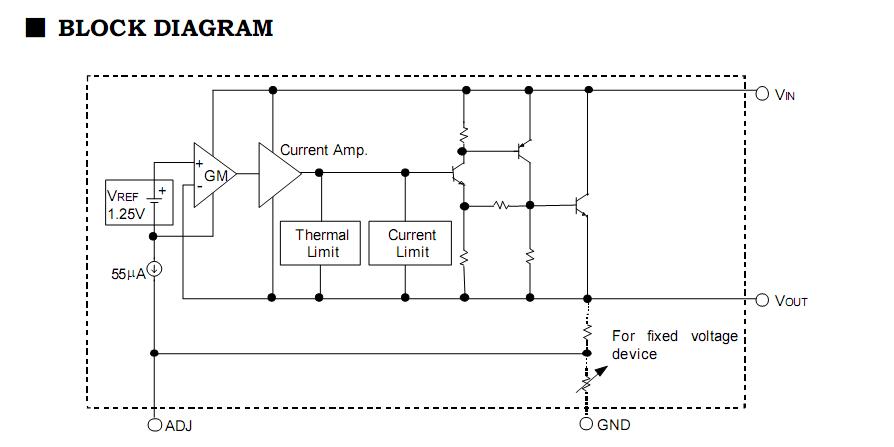

Diagrams
