Product Summary

The adv7300akst is a high speed, digital-to-analog encoder on a single monolithic chip. It includes six high speed video D/A converters with TTL compatible inputs. The applications of the device are (1)High End DVD Players; (2)SD/Program Scan/HDTV Display Devices; (3)SD/Program Scan/HDTV Set-Top Boxes; (4)SD/HDTV Studio Equipment.

Parametrics

adv7300akst absolute maximum ratings: (1)VAA to AGND: +3.0 V to –0.3 V; (2)VDD to GND: +3.0 V to –0.3 V; (3)VDD_IO to IO_GND: –0.3 V to VDD_IO + 0.3 V; (4)Ambient Operating Temperature (TA): 0°C to +70°C; (5)Storage Temperature (TS): –65°C to +150°C; (6)Infrared Reflow Soldering (20 sec): 260°C.

Features

adv7300akst features: (1)Simultaneous SD and HD Inputs and Outputs; (2)Oversampling (108 MHz/148.5 MHz); (3)On-Board Voltage Reference; (4)6 NSV Precision Video 12-Bit DACs; (5)2-Wire Serial MPU Interface; (6)Dual I/O Supply 2.5 V/3.3 V Operation; (7)Analog and Digital Supply 2.5 V; (8)On-Board PLL; (9)64-LQFP Package; (10)Lead-Free Product.

Diagrams

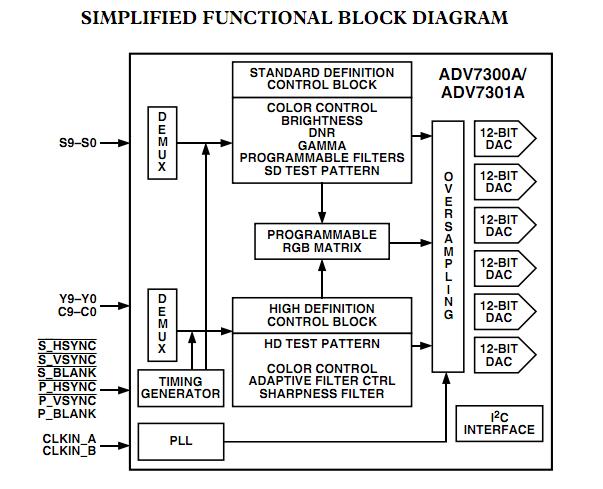

adv7300akst block diagram
