ADG779BKSZ-REEL

adg779bksz-reel, CMOS SPDT switch, 7 V, 100mA, 315mW, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.33~0.33 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1500 :	0.33 / Piece

PartNumber:: ADG779BKSZ-REEL

Brand:: Analog Devices - AD | Pack: | D/C: 06+

Availability:: Supply Ability: 1500/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-09-11

From Other Seller

Part Number:ADG779BKSZ-REEL
US $0.33 - 0.33
Quantity:

piece

Product Summary

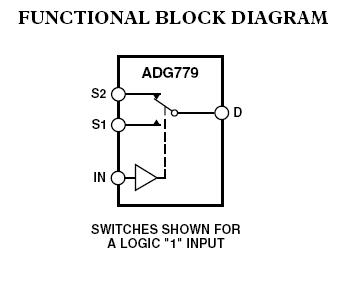

The adg779bksz-reel is a monolithic CMOS SPDT (single-pole, double-throw) switch. This switch is designed on a submicron process that provides low power dissipation yet gives high switching speed, low on resistance and low leakage currents. The adg779bksz-reel operates from a single supply range of 1.8V to 5.5V, making it ideal for use in battery-powered instruments and with the new generation of DACs and ADCs from Analog Devices. The applications of the adg779bksz-reel include Battery-Powered Systems, Communication Systems, Sample Hold Systems, Audio Signal Routing, Video Switching, Mechanical Reed Relay Replacement.

Parametrics

adg779bksz-reel absolute maximum ratings: (1)VDD to GND:–0.3 V to +7 V; (2)Analog, Digital Inputs2:–0.3 V to VDD + 0.3 V or 30mA, Whichever Occurs First; (3)Peak Current, S or D: 100mA (Pulsed at 1ms, 10% Duty Cycle max); (4)Continuous Current, S or D: 30mA; (5)Operating Temperature Range Industrial (B Version):–40℃ to +85℃; (6)Storage Temperature Range:–65℃ to +150℃; (7)Junction Temperature: 150℃; (8)SC70 Package, Power Dissipation: 315mW; (9)θJA Thermal Impedance: 332℃/W; (10)θJC Thermal Impedance: 120℃/W; (11)Lead Temperature, Soldering Vapor Phase (60 sec): 215℃; (12)Infrared (15 sec): 220℃.

Features

adg779bksz-reel features: (1)1.8V to 5.5V Single Supply; (2)2.5Ω On Resistance; (3)0.75Ω On-Resistance Flatness; (4)–3dB Bandwidth >200 MHz; (5)Rail-to-Rail Operation; (6)6-Lead SC70 Package; (7)Fast Switching Times tON 20ns, tOFF 6ns; (8)Typical Power Consumption (＜0.01μW); (9) TTL/CMOS-Compatible.
