AD9843AJST

AD9843AJST, analog signal processor, 3.9 V, 6 dB, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.17~3.17 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1866 :	3.17 / Piece

PartNumber:: AD9843AJST

Brand:: Analog Devices - AD | Pack: SOP | D/C: 02+

Availability:: Supply Ability: 100/Month Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-07-10

From Other Seller

Part Number:AD9843AJST
US $3.17 - 3.17
Quantity:

piece

Product Summary

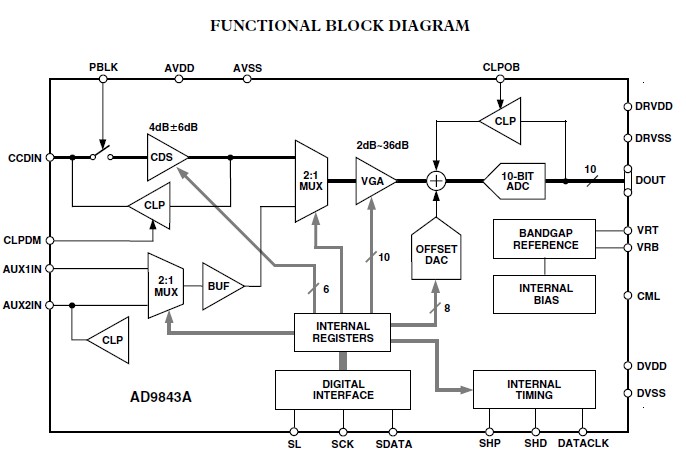

The AD9843AJST is a complete analog signal processor for CCD applications. It features a 20 MHz single-channel architecture designed to sample and condition the outputs of interlaced and progressive scan area CCD arrays. The AD9843AJST signal chain consists of an input clamp, correlated double sampler (CDS), digitally controlled variable gain amplifier (VGA), black level clamp, and 10-bit A/D converter. Additional input modes are provided for processing analog video signals. Applications are (1)Digital Still Cameras; (2)Digital Video Camcorders; (3)PC Cameras.

Parametrics

AD9843AJST absolute maximum ratings: (1)AVDD1, AVDD2 AVSS: –0.3 to +3.9 V; (2)DVDD1, DVDD2 DVSS: –0.3 to +3.9 V; (3)DRVDD DRVSS: –0.3 to +3.9 V; (4)Digital Outputs DRVSS: –0.3 to DRVDD + 0.3 V; (5)SHP, SHD, DATACLK DVSS: –0.3 to DVDD + 0.3 V; (6)CLPOB, CLPDM, PBLK DVSS: –0.3 to DVDD + 0.3 V; (7)SCK, SL, SDATA DVSS: –0.3 to DVDD + 0.3 V; (8)VRT, VRB, CMLEVEL AVSS: –0.3 to AVDD + 0.3 V; (9)BYP1-4, CCDIN AVSS: –0.3 to AVDD + 0.3 V; (10)Junction Temperature: 150 °C; (11)Lead Temperature (10 sec): 300 °C.

Features

AD9843AJST features: (1)20 MSPS Correlated Double Sampler (CDS); (2)4 dB ± 6 dB Variable CDS Gain with 6-Bit Resolution; (3)2 dB to 36 dB 10-Bit Variable Gain Amplifier (VGA); (4)Low Noise Clamp Circuits; (5)Analog Preblanking Function; (6)10-Bit 20 MSPS A/D Converter; (7)Auxiliary Inputs with VGA and Input Clamp; (8)3-Wire Serial Digital Interface; (9)3 V Single Supply Operation; (10)Low Power: 65 mW 2.7 V Supply; (11)48-Lead LQFP Package.
