Product Summary

The A42MX16-FTQ176 is a FPGA. offer a cost-effective design solution at 5V. The A42MX16-FTQ176 is a single-chip solution and provides high performance while shortening the system design and development cycle. The A42MX16-FTQ176can integrate and consolidate logic implemented in multiple PALs, CPLDs, and FPGAs.

Parametrics

A42MX16-FTQ176 absolute maximum ratings: (1) DC Supply Voltage Vcc: -0.5 to +7.0V; (2) Input Voltage VI: -0.5 to Vcc +0.5V; (3) Output Voltage Vo: -0.5 to Vcc +0.5V; (4) Storage Temperature tSTG: -65 to +150°C.

Features

A42MX16-FTQ176 features: (1) Single-Chip ASIC Alternative; (2) 3,000 to 54,000 System Gates; (3) Up to 2.5 kbits Configurable Dual-Port SRAM; (4) 100 MHz FIFOs; (5) 7.5 ns 35-Bit Address Decode; (6) Commercial, Industrial, Automotive, and Military Temperature Plastic Packages; (7) Ceramic Devices Available to DSCC SMD; (8) Unique In-System Diagnostic and Verification Capability with Silicon Explorer II; (9) Up to 100% Resource Utilization and 100% Pin Locking; (10) IEEE Standard 1149.1 (JTAG) Boundary Scan Testing.

Diagrams

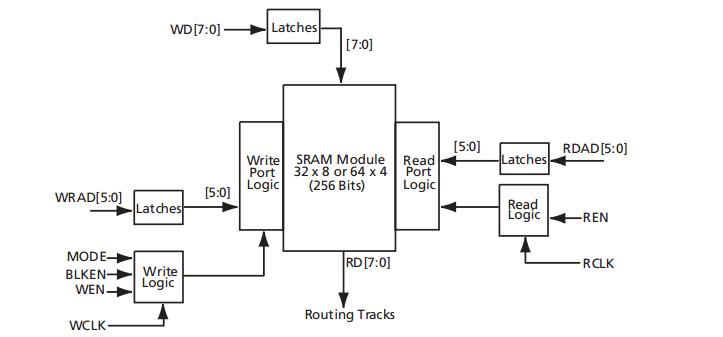

A42MX16-FTQ176 Block Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
A42MX16-FTQ176
A42MX16-FTQ176


IC FPGA MX SGL CHIP 24K 176-TQFP
