UDA1334BTS/N2

Low power audio DAC, -4.0 V, 100 kHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.45~0.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1500 :	0.45 / Piece

PartNumber:: UDA1334BTS/N2

Brand:: Philips Electronics India Limited - PHILIPS | Pack: | D/C: 06+

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-17

From Other Seller

Part Number:UDA1334BTS/N2
US $0.45 - 0.45
Quantity:

piece

Product Summary

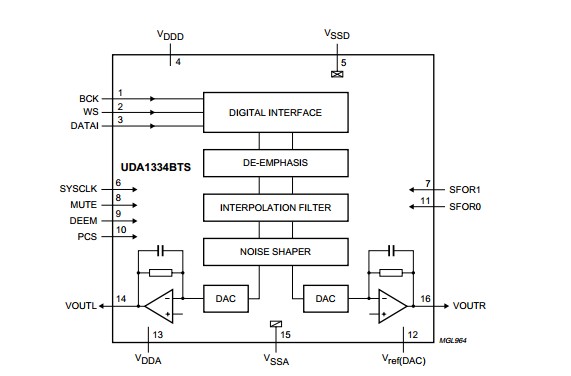

The UDA1334BTS/N2 is a Low power audio DAC. It supports the I2S-bus data format with word lengths of up to 24 bits and the LSB-justified serial data format with word lengths of 16, 20 and 24 bits. The UDA1334BTS/N2 has basic features such as de-emphasis (at 44.1 kHz sampling rate) and mute.

Parametrics

UDA1334BTS/N2 absolute maximum ratings: (1)supply voltage: -4.0 V; (2)maximum crystal temperature: -150℃; (3)storage temperature: -65 +125℃; (4)ambient temperature: -40 +85℃; (5)electrostatic handling voltage-human body model: -2000 to +2000 V; (6)electrostatic handling voltage-machine model: -200 +200 V.

Features

UDA1334BTS/N2 features: (1)1.8 to 3.6 V power supply voltage; (2)Integrated digital filter plus DAC; (3)Supports sample frequencies from 8 to 100 kHz; (4)Automatic system clock versus sample rate detection; (5)Low power consumption; (6)No analog post filtering required for DAC; (7)Slave mode only applications; (8)Easy application; (9)SSOP16 package.
