Product Summary
The UDA1328T/N1/S1 is a single-chip 6-channel DAC employing bitstream conversion techniques, which can be used either in L3 microcontroller mode or in static pin mode. The UDA1328 supports the I2S-bus data format with word lengths of up to 24 bits, the MSB-justified data format with word lengths of up to 24 bits and the LSB-justified serial data format with word lengths of 16, 18, 20 and 24 bits. It is eminently suitable for DVD like applications in which 5.1 channel encoded signals are used.
Parametrics
UDA1328T/N1/S1 absolute maximum ratings: (1)digital supply voltage: -5.0 V; (2)analog supply voltage: -5.0 V; (3)(max) maximum crystal temperature: -150℃; (4)storage temperature: -65 +125℃; (5)ambient temperature: -40 +85℃.
Features
UDA1328T/N1/S1 features: (1)2.7 to 3.6 V power supply; (2)5 V tolerant TTL compatible inputs; (3)Selectable control via L3 microcontroller interface or via static pin control; (4)Multi-channel integrated digital filter plus non-inverting Digital-to-Analog Converter (DAC); (5)Supports sample frequencies between 5 and 100 kHz; (6)Digital silence detection (output); (7)Slave mode only applications; (8)No analog post filtering required for DAC; (9)Easy application.

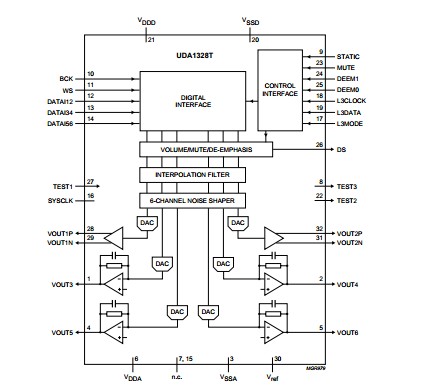

Diagrams
