Product Summary
The UBA2024T/N1 is a high-voltage monolithic Integrated Circuit (IC). The IC is designed for driving Compact Fluorescent Lamps (CFL) in a half-bridge configuration. The IC features a soft start function, an adjustable internal oscillator and an internal drive function with a high-voltage level shifter for driving the half-bridge. To guarantee an accurate 50 % duty cycle, the oscillator signal is passed through a divider before being fed to the output drivers.
Parametrics
UBA2024T/N1 absolute maximum ratings: (1)supply voltage: 14V; (2)supply current: 5mA; (3)slew rate: -4 to +4 V/ns; (4)junction temperature: -40 to +150℃; (5)ambient temperature: -40 to +150℃; (6)storage temperature: -55 to +150℃.
Features
UBA2024T/N1 features: (1)Integrated bootstrap diode; (2)Integrated low-voltage supply; (3)Adjustable oscillator frequency; (4)550 V maximum voltage; (5)Minimum glow time control; (6)Soft start; (7)Integrated half-bridge power transistor: 9Ω.

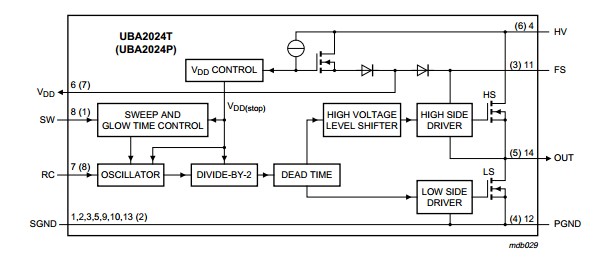

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 UBA2024T/N1,518 |
NXP Semiconductors |
Display Drivers & Controllers IC DRIVER HALF BRDG |
Data Sheet |
|
|
||||||||||||
