Product Summary

The TRF6900APT is a Single-Chip RF Transceiver which is an integrated circuit intended for use as a low cost FSK transceiver to establish a frequency-agile, half-duplex, bidirectional RF link. The device is available in a 48-lead TQFP package and is designed to provide a fully-functional multichannel FM transceiver. The chip is intended for linear (FM) or digital (FSK) modulated applications in the new 868-MHz European band and the North American 915-MHz ISM band. The single chip transceiver operates down to 2.2 V and is expressly designed for low power consumption. The synthesizer has a typical channel spacing of approximately 230 Hz to allow narrow-band as well as wide-band application. Due to the narrow channel spacing of the direct digital synthesizer (DDS), the DDS can be used to adjust the TX/RX frequency and allows the use of inexpensive reference crystals.

Parametrics

TRF6900APT absolute maximum ratings: (1)Supply voltage range: -0.6 to 4.5 Vdc; (2)Input voltage, VI (logic signals): -0.6 to 4.5 Vdc; (3)Storage temperature range: -65℃ to 150℃.

Features

TRF6900APT features: (1)Single-Chip RF Transceiver for 868-MHz and 915-MHz ISM Bands; (2)850-MHz to 950-MHz Operation; (3)FM/FSK Operation for Transmit and Receive; (4)24-Bit Direct Digital Synthesizer (DDS) With 11-Bit DAC; (5)On-Chip VCO and PLL; (6)On-Chip Reference Oscillator; (7)Minimal External Components Required; (8)Low Power Consumption; (9)Typical Output Power of 4.5 dBm; (10)Typical Output Frequency Resolution of 230 Hz; (11)Ultrafast Lock Times From DDS Implementation; (12)Two Fully-Programmable Operational Modes; (13)2.2-V to 3.6-V Operation; (14)Fast Radio Strength Signal Indicator (RSSI); (15)Flexible Serial Interface to TI MSP430 Microcontroller; (16)48-Pin Low-Profile Plastic Quad Flat Package (PQFP).

Diagrams

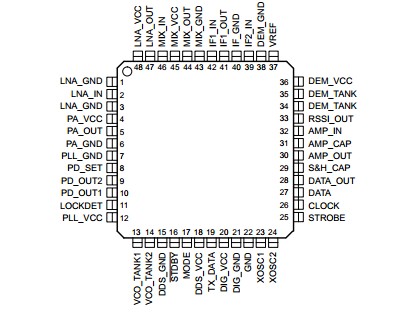

PQFP PACKAGE (TOP VIEW)

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TRF6900APT
TRF6900APT

Texas Instruments

RF Transceiver Hily Integr MultiCh RF Trans

Data Sheet

0-147: $3.04
147-250: $2.77
250-500: $2.59
500-1000: $2.38
TRF6900APTG4
TRF6900APTG4

Texas Instruments

RF Transceiver Sgl-Chip RF Transmitter

Data Sheet

0-147: $3.04
147-250: $2.77
250-500: $2.59
500-1000: $2.38
TRF6900APTRG4
TRF6900APTRG4

Texas Instruments

RF Transceiver Sgl-Chip RF Transmitter

Data Sheet

0-695: $2.36
695-1000: $2.17
1000-2000: $2.09
TRF6900APTR
TRF6900APTR

Texas Instruments

RF Transceiver Sgl-Chip RF Transmitter

Data Sheet

0-695: $2.36
695-1000: $2.17
1000-2000: $2.09
