TMS320C6203BGN

TMS320C6203BGN, fixed-point digital signal processor, 4 V, 300 MHz, BGA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $8.00~8.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 3000 :	8.00 / Piece

PartNumber:: TMS320C6203BGN

Brand:: Texas Instruments - TI | Pack: BGA | D/C: 11+

Availability:: Supply Ability: 1/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-12

From Other Seller

Part Number:TMS320C6203BGN
US $8.00 - 8.00
TMS320C6203BGNY300

US $80.00 - 100.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

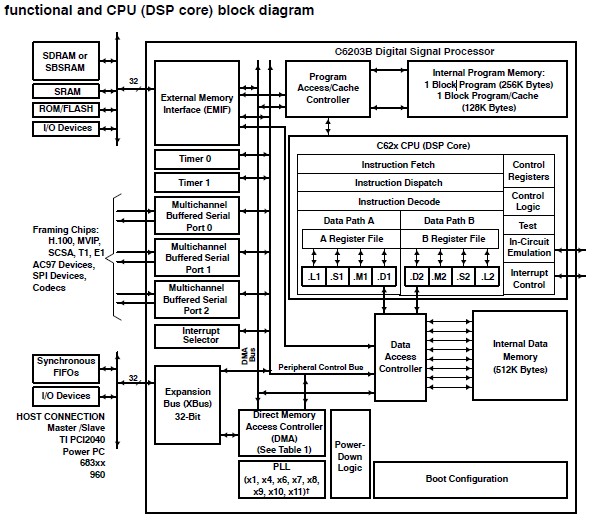

The TMS320C6203BGN is a fixed-point digital signal processor. The TMS320C6203BGN is based on the high-performance, advanced VelociTI very-long-instruction-word (VLIW) architecture developed by Texas Instruments (TI), making these DSPs an excellent choice for multichannel and multifunction applications. The TMS320C6203BGN has a performance capability of up to 2400 MIPS at a clock rate of 300 MHz. It possesses the operational flexibility of high-speed controllers and the numerical capability of array processors. This processor has 32 general-purpose registers of 32-bit word length and eight highly independent functional units.

Parametrics

TMS320C6203BGN absolute maximum ratings: (1)Supply voltage range, CVDD: -0.3 V to 1.8 V; (2)Supply voltage range, DVDD: -0.3 V to 4 V; (3)Input voltage range: -0.3 V to 4 V; (4)Output voltage range: -0.3 V to 4 V; (5)Operating case temperature ranges, TC: (default): 0℃ to 90℃; (6)Storage temperature range, Tstg: -65℃ to 150℃; (7)Temperature cycle range, (1000-cycle performance): -40℃ to 125℃.

Features

TMS320C6203BGN features: (1)High-Performance Fixed-Point Digital Signal Processor (DSP) TMS320C62x: 4-, 3.33-ns Instruction Cycle Time; 250-, 300-MHz Clock Rate; Eight 32-Bit Instructions/Cycle; 2000, 2400 MIPS; (2)C6203B and C6202 GLS Ball Grid Array(BGA) Packages are Pin-Compatible With the C6204 GLW BGA Package; (3)C6203B and C6202B GNZ and GNY Packages are Pin-Compatible; (4)VelociTI Advanced Very-Long-Instruction-Word (VLIW) C62x DSP Core; (5)Four-Channel Bootloading Direct-Memory-Access (DMA) Controller With an Auxiliary Channel; (6)Flexible Phase-Locked-Loop (PLL) Clock Generator; (7)32-Bit Expansion Bus (XBus); (8)Two 32-Bit General-Purpose Timers; (9)IEEE-1149.1 (JTAG) Boundary-Scan-Compatible.
