TL7733BCDR

TL7733BCDR, supply-voltage supervisor, 20 V, 30 mA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~1.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	1.00 / Piece

PartNumber:: TL7733BCDR

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 07+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-12

From Other Seller

Part Number:TL7733BCDR
US $1.00 - 1.00
Quantity:

piece

Product Summary

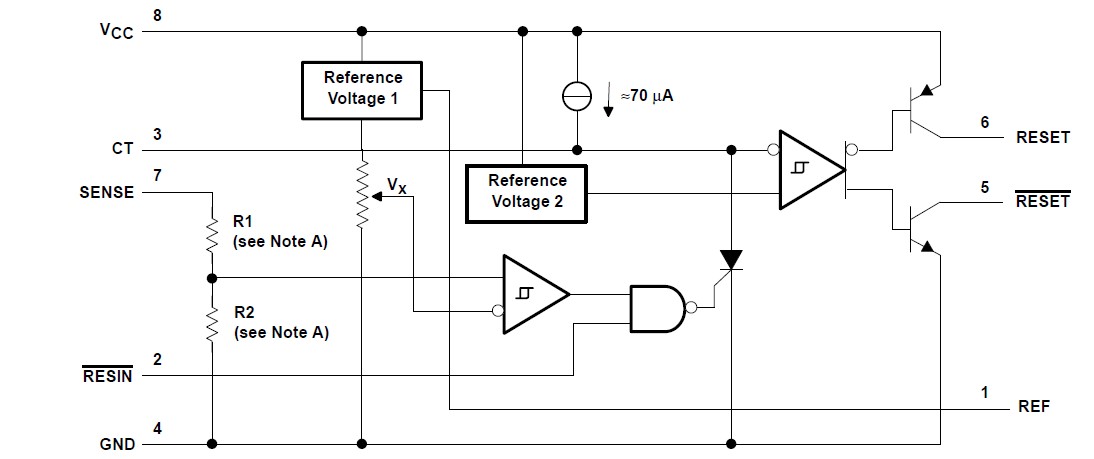

The TL7733BCDR is an integrated-circuit supply-voltage supervisor designed for use as reset controllers in microcomputer and microprocessor systems. The supply-voltage supervisor monitors the supply for undervoltage conditions at the SENSE input. During power up, the RESET output becomes active (low) when VCC attains a value approaching 1 V. As VCC approaches 3 V (assuming that SENSE is above VT+), the delay-timer function activates a time delay, after which outputs RESET and RESET go inactive (high and low, respectively). When an undervoltage condition occurs during normal operation, outputs RESET and RESET go active.

Parametrics

TL7733BCDR absolute maximum ratings: (1)Supply voltage, VCC: 20 V; (2)Input voltage range, VI: RESIN: –0.3 V to 20 V; (3)SENSE: –0.3 V to 20 V; (4)High-level output current, IOH (RESET): –30 mA; (5)Low-level output current, IOL (RESET): 30 mA; (6)Package thermal impedance, θJA (see Notes 2 and 3): D package: 97°C/W, P package: 85°C/W; (7)Operating virtual junction temperature, TJ: 150°C; (8)Case temperature for 60 seconds, TC: FK package: 260°C; (9)Lead temperature 1,6 mm (1/16 inch)from case for 60 seconds: JG or U packages: 300°C; (10)Lead temperature 1,6 mm (1/16 inch)from case for 10 seconds: D or P packages: 260°C; (11)Storage temperature range, Tstg: –65°C to 150°C.

Features

TL7733BCDR features: (1)Power-On Reset Generator; (2)Automatic Reset Generation After Voltage Drop; (3)RESET Output Defined From VCC ≥ 1 V; (4)Precision Voltage Sensor; (5)Temperature-Compensated Voltage Reference; (6)True and Complement Reset Outputs; (7)Externally Adjustable Pulse Duration.
