TL431CLP

TL431CLP, three-terminal adjustable regulator, 40 V, 150 mA, 0.7 W, TO

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.10~0.10 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.10 / Piece

PartNumber:: TL431CLP

Brand:: STMicroelectronics - ST | Pack: TO | D/C: 09+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-26

From Other Seller

Part Number:TL431CLP
US $0.10 - 0.10
Quantity:

piece

Product Summary

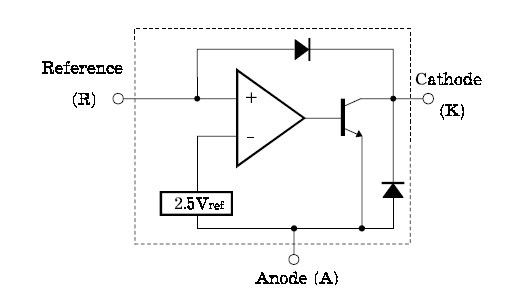

The TL431CLP is a three-terminal adjustable regulator series with a guaranteed thermal stability over applicable temperature ranges. The output voltage may be set to any value between Vref (approximately 2.5 volts) and 36 volts with two external resistors. The TL431CLP has a typical dynamic output impedance of 0.2Ω. Active output circuitry provides a very sharp turn-on characteristic, making these devices excellent replacement for zener diodes in many applications. The TL431CLP is characterized for operation from -0oC to +70℃.

Parametrics

TL431CLP absolute maximum ratings: (1)Cathode Voltage VKA: 40 V; (2)Cathode Current Range (Continuous)IK: 100 ~ 150 mA; (3)Reference Input Current Range IREF: 0.05 ~ 10 mA; (4)Power Dissipation at 25℃ TO – 92 Package PD: 0.7 W; (5)Junction Temperature Range TJ: 0 ~ 150℃; (6)Operating Temperature Range Tg: 0 ~ 70℃; (7)Storage Temperature Range Tstg: -65 ~ +150℃.

Features

TL431CLP features: (1)Programmable Output Voltage to 40V; (2)Low Dynamic Output Impedance 0.2Ω; (3)Sink Current Capability of 0.1 mA to 100 mA; (4)Equivalent Full-Range Temperature Coefficient of 50 ppm/oC; (5)Temperature Compensated for Operation over Full Rated Operating Temperature Range; (6)Low Output Noise Voltage; (7)Fast Turn on Respons; (8)TO-92 or SOT-23 and SOT-89 ,SO8packages.
