TL431CDR

TL431CDR, three-terminal adjustable shunt regulator, 36 V, 0.2 Ω, 10 mA, 14 mV, 50 μA, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.18~0.18 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2500 :	0.18 / Piece

PartNumber:: TL431CDR

Brand:: Texas Instruments - TI | D/C: 02+

Availability:: Supply Ability: 3/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-20

From Other Seller

Part Number:TL431CDR
US $0.18 - 0.18
Quantity:

piece

Product Summary

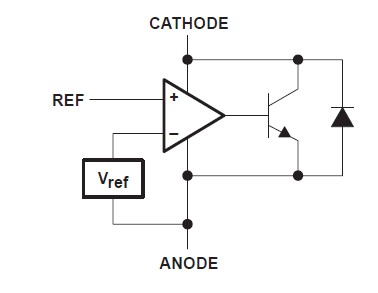

The TL431CDR is a three-terminal adjustable shunt regulator, with specified thermal stability over applicable automotive, commercial, and military temperature ranges. The output voltage can be set to any value between Vref (approximately 2.5 V) and 36 V, with two external resistors (see Figure 17). The TL431CDR has a typical output impedance of 0.2 Ω. Active output circuitry provides a very sharp turn-on characteristic, making the TL431CDR excellent replacements for Zener diodes in many applications, such as onboard regulation, adjustable power supplies, and switching power supplies.

Parametrics

TL431CDR absolute maximum ratings: (1)Cathode voltage, VKA (see Note 1): 37 V; (2)Continuous cathode current range: -100 mA to 150 mA; (3)Reference input current range: -50 μA to 10 mA; (4)Operating virtual junction temperature: 50°C; (5)Storage temperature range, Tstg: -65°C to 150°C.

Features

TL431CDR features: (1)Operation From −40°C to 125°C; (2)Reference Voltage Tolerance at 25°C: 0.5%: B Grade; 1%: A Grade; 2%: Standard Grade; (3)Typical Temperature Drift: 6 mV (C Temp);14 mV (I Temp, Q Temp); (4)Low Output Noise; (5)0.2-Ω Typical Output Impedance; (6)Sink-Current Capability: 1 mA to 100 mA; (7)Adjustable Output Voltage: Vref to 36 V.
