Product Summary
The TCD2558D-1 is a high sensitive and low dark current 5340 elements × 3 line CCD color image sensor which includes CCD drive circuit, clamp circuit. The TCD2558D-1 can be used for image scanner. The TCD2558D-1 contains a row of 5340 × 3 photodiodes, which provide a 24 lines/mm (600 dpi) across a A4 size paper. The TCD2558D-1 is operated by 5 V (pulse), and 12 V power supply.
Parametrics
TCD2558D-1 absolute maximum ratings: (1)Clock pulse voltage V: -0.3 to 8 V; (2)Shift pulse voltage VSH: -0.3 to 8 V; (3)Reset pulse voltage VRS: -0.3 to 8 V; (4)Clamp pulse voltage VCP: -0.3 to 8 v; (5)Power supply VOD: -0.3~15 V; (6)Operating temperature Topr: 0~60 °C; (7)Storage temperature Tstg: -25~85 °C.
Features
TCD2558D-1 features: (1)Number of image sensing elements: 5340 elements × 3 line; (2)Image sensing element size: 7 μm by 7 μm on 7 μm centers; (3)Photo sensing region: High sensitive and low dark current PN photodiode; (4)Distance between photodiode array: 28 μm, 4 line; (5)Clock: 2 phase (5 V); (6)Power supply: 12 V power supply voltage; (7)Internal circuit: Clamp circuit; (8)Package: 22 pin CERDIP package; (9)Color filter: Red, green, blue.

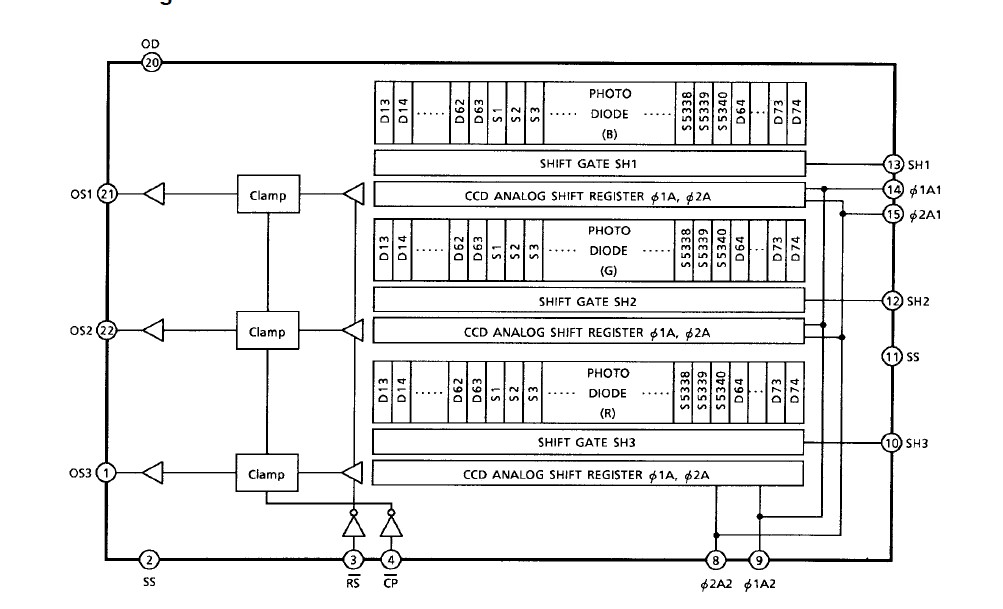

Diagrams
