Product Summary
The TC5165165AFT-5 is a 256k bit high-speed CMOS pseudo-static RAM organized as 32,768 words by 8 bits. The TC5165165AFT-5 utilizes one transistor dynamic one transistor dynamic memory cell array with CMOS peripheral circuitry to achieve large capacity, high speed accesses, and low power requirements, using a single 5 V power supply.
Parametrics
TC5165165AFT-5 absolute maximum ratings: (1)input voltage: -1.0 to 7.0 V; (2)output voltage: -1.0 to 7.0 V; (3)power supply voltage: -1.0 to 7.0 V; (4)operating temperature: 0 to 70 ℃; (5)storage temperature: -55 to 150 ℃; (6)power dissipation: 600 mW.
Features
TC5165165AFT-5 features: (1)organization: 256k bit; (2)fast access time and low power dissipation; (3)self refresh uses an internal timer; (4)all inputs and outputs: TTL compatible; (5)256 refresh cycle/4ms; (6)pin compatible: 256k SRAM TC55257; (7)logic compatible: SRAM R/W pin.

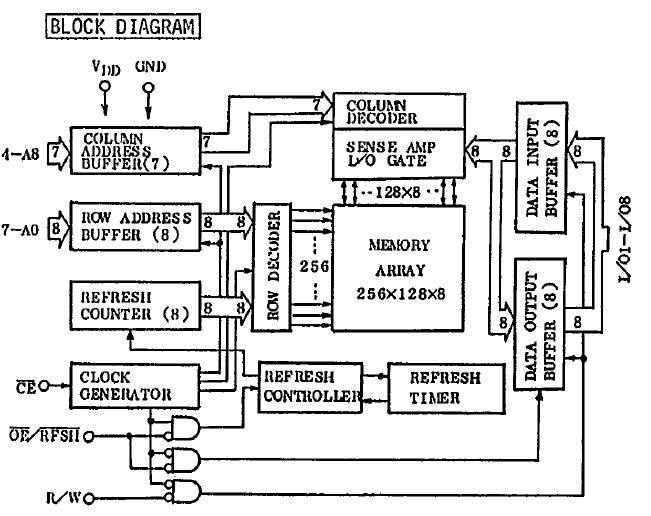

Diagrams
