Product Summary

The STV5726ADT is an 2-head playback and record amplifier for VCR.

Parametrics

STV5726ADT absolute maximum ratings: (1)Power Supply Voltage: 6 V; (2)Junction Temperature: 150 ℃; (3)Operating Temperature: 0 to +70 ℃.

Features

STV5726ADT features: (1)One 5v power supply; (2)Playback/record mode selection; (3)Througha logic input; (4)SO20 package; (5)No adjustment for luminance recording.

Diagrams

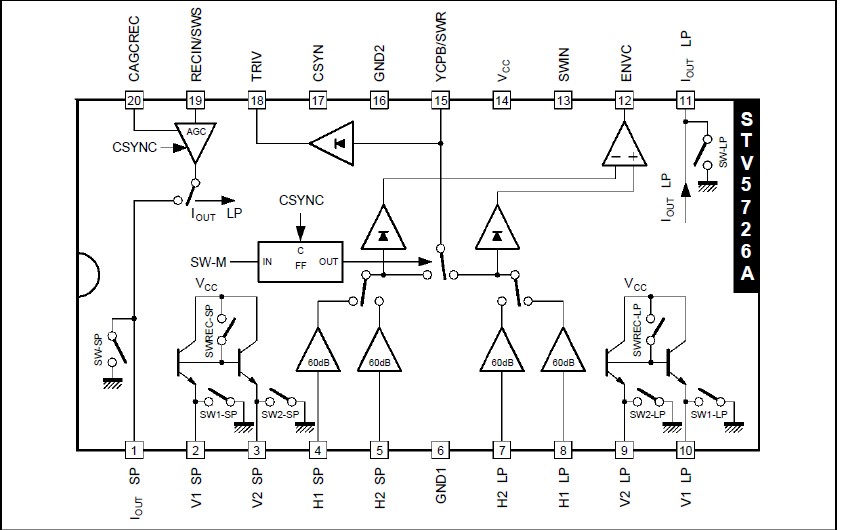

STV5726ADT pin connection
