Product Summary

The LPC2144FBD64 is a Single-chip 16-bit/32-bit microcontroller based on an ARM7TDMI-S CPU with real-time emulation and embedded trace support. The LPC2144FBD64 combines microcontroller with embedded high-speed flash memory ranging from 32 kB to 512 kB. A 128-bit wide memory interface and a unique accelerator architecture enable 32-bit code execution at the maximum clock rate. For critical code size applications, the alternative 16-bit Thumb mode reduces code by more than 30 % with minimal performance penalty.

Parametrics

LPC2144FBD64 absolute maximum ratings: (1)VDD, supply voltage: -0.5 to +3.6 V; (2)VDDA, analog supply voltage: -0.5 to 4.6 V; (3)Vi(VBAT), input voltage on pin VBAT for the RTC: -0.5 to 4.6 V; (4)Vi(VREF), input voltage on pin VREF: -0.5 to 4.6 V; (5)Via, analog input voltage: -0.5 to 5.1 V; (6)VI, input voltage 5 V tolerant I/O pins: -0.5 to 6.0 V; other I/O pins: -0.5 to VDD + 0.5V; (7)IDD, DC supply current: -100mA; (8)ISS, DC ground current: -100mA; (9)Tstg, storage temperature: -40 to 125℃; (10)Ptot(pack), package total power dissipation: 1.5 W.

Features

LPC2144FBD64 features: (1)16-bit/32-bit ARM7TDMI-S microcontroller in a tiny LQFP64 package; (2)8 kB to 40 kB of on-chip static RAM and 32 kB to 512 kB of on-chip flash memory, 128-bit wide interface/accelerator enables high-speed 60 MHz operation; (3)In-System Programming/In-Application Programming (ISP/IAP) via on-chip boot loader software. Single flash sector or full chip erase in 400 ms and programming of 256 bytes in 1 ms; (4)EmbeddedICE RT and Embedded Trace interfaces offer real-time debugging with the on-chip RealMonitor software and high-speed tracing of instruction execution; (5)USB 2.0 Full-speed compliant device controller with 2 kB of endpoint RAM. In addition, the LPC2146/48 provides 8 kB of on-chip RAM accessible to USB by DMA; (6)One or two (LPC2141/42 vs. LPC2144/46/48) 10-bit ADCs provide a total of 6/14 analog inputs, with conversion times as low as 2.44 ms per channel; (7)Single 10-bit DAC provides variable analog output(LPC2142/44/46/48 only).; (8)Two 32-bit timers/external event counters (with four capture and four compare channels each), PWM unit (six outputs) and watchdog; (9)Low power Real-Time Clock (RTC) with independent power and 32 kHz clock input.

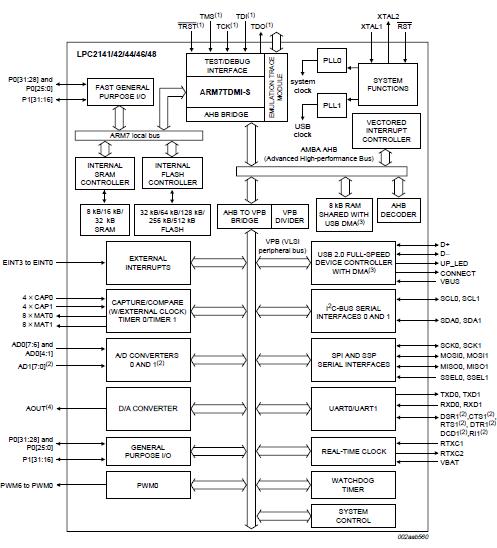

Diagrams

LPC2144FBD64 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
LPC2144FBD64,151
LPC2144FBD64,151

NXP Semiconductors

ARM Microcontrollers (MCU) ARM7 128KF/16KR/USB

Data Sheet

0-1: $4.97
1-25: $4.46
25-100: $4.09
100-250: $3.94
