SN74HCT157DR

SN74HCT157DR, data selector/multiplexer, 7 V, 70 mA, 15 ns, SOP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.30 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 1000 :	0.30 / Piece

PartNumber:: SN74HCT157DR

Brand:: Texas Instruments - TI | Pack: SOP | D/C: 08+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-27

From Other Seller

Part Number:SN74HCT157DR
US $0.30 - 0.30
Quantity:

piece

Product Summary

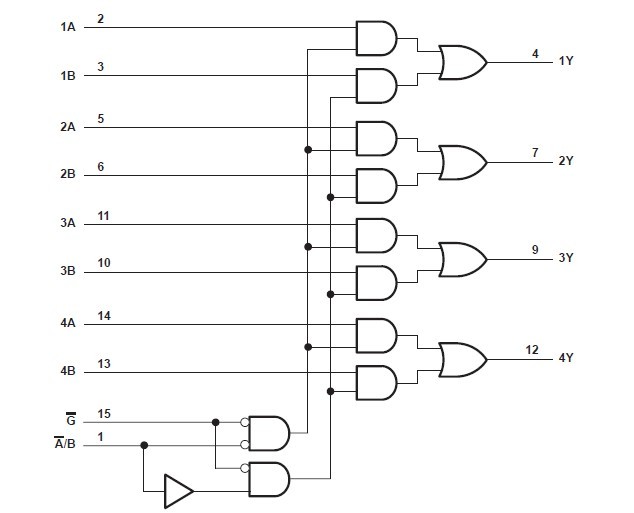

The SN74HCT157DR data selector/multiplexer contains inverters and drivers to supply full data selection to the four output gates. A separate strobe (G) input is provided. A 4-bit word is selected from one of two sources and is routed to the four outputs.

Parametrics

SN74HCT157DR absolute maximum ratings: (1)Supply voltage range, VCC: -0.5 V to 7 V; (2)Input clamp current, IIK (VI < 0 or VI > VCC): ±20 mA; (3)Output clamp current, IOK (VO < 0 or VO > VCC): ±20 mA; (4)Continuous output current, IO (VO = 0 to VCC): ±35 mA; (5)Continuous current through VCC or GND: ±70 mA; (6)Storage temperature range, Tstg: -65°C to 150°C.

Features

SN74HCT157DR features: (1)Operating Voltage Range of 4.5 V to 5.5 V; (2)High-Current Outputs Drive Up To 15 LSTTL Loads; (3)Typical tpd = 15 ns; (4)Low Power Consumption, 80-μA Max ICC; (5)±6-mA Output Drive at 5 V; (6)Low Input Current of 1 μA Max; (7)Inputs Are TTL-Voltage Compatible; (8)Buffered Inputs and Outputs.
