Product Summary

The Universal Serial Bus hub PDIUSBD11D is a cost and feature-optimized USB interface device. The PDIUSBD11D is used in microcontroller-based systems and communicates with the system microcontroller over the high speed I2C serial bus. This modular approach to implementing USB functions allows the designer to choose the optimum system microcontroller from the available wide variety. The PDIUSBD11D is ideally suited for computer monitors, docking stations, keyboards, and many other applications that use the I2C or the SMBus-based architecture.

Parametrics

PDIUSBD11D absolute maximum ratings: (1)VCC DC supply voltage: –0.5 to +4.6 V; (2)IIK DC input diode current VI < 0: 50 mA; (3)VI DC input voltage: –0.5 to +5.5 V; (4)VI/O DC input voltage range for I/O: –0.5 to VCC + 0.5 V; (5)IOK DC output diode current VO > VCC or VO < 0: ±50 mA; (6)VO DC output voltage: –0.5 to VCC + 0.5 V; (7)IO DC output sink or source current for other pins VO = 0 to VCC: ±15 mA; (8)IO DC output sink or source current for D+/D– pins VO = 0 to VCC: ±50 mA; (9)IGND, ICC DC VCC or GND current: ±100 mA; (10)TSTG Storage temperature range: –60 to +150 °C.

Features

PDIUSBD11D features: (1)Compliant with USB Human Interface Devices and Monitor Control Class; (2)Compliant with System Management Bus Specification Rev. 1.0; (3)Integrated SIE (Serial Interface Engine), FIFO memory and transceivers; (4)Automatic USB protocol handling; (5)High speed I2C Interface (up to 1 Mbit/s); (6)Compatible with the PDIUSBH11 software; (7)Software controllable connection to USB bus (SoftConnectE); (8)Low frequency 12 MHz crystal oscillator eases EMI design issues; (9)Programmable output clock frequency; (10)Bus powered capability with very low suspend current; (11)Controllable LazyClock output during suspend; (12)Single 3.3 V supply with 5 V tolerant I/O; (13)Available in 16-pin DIP and SO packages; (14)Full-scan design with high fault coverage (>99%)insures high quality; (15)Higher than 8 kV in-circuit ESD protection lowers cost of extra components.

Diagrams

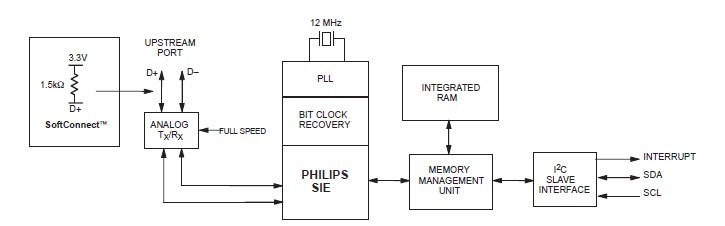

PDIUSBD11D pin connection
