Product Summary

The MT90820AP is an advanced digital switch allowing the users to build up to 2048 channel non-blocking switch. The serial interface can be at 2, 4 or 8 Mb/s compatible to ST-BUS/MVIP/ HMVIP or GCI standards. The LDX can be programmed to provide either minimum or constant throughput delay on all its channels. The device also features three-state control and message mode on per-channel basis.Applications include Medium and large switching platforms, C.O. switches, CTI application, Voice/data multiplexer, Digital cross connects and ST-BUS/HMVIP interface functions.

Parametrics

MT90820AP absolute maximum ratings: (1)Supply Voltage: 6.0 V; (2)Voltage on any pin I/O (other than supply pins): VSS- 0.3 to VDD + 0.3 V; (3)Current at digital outputs: 40 mA; (4)Package power dissipation: 2 W; (5)Storage temperature: -65 to 150℃.

Features

MT90820AP features: (1)2,048 channel non-blocking switch;(2)Maintains frame integrity on concatenated channels;(3)Per-channel selection of minimum or constant through put delay; (4)Serial streams at 2.048, 4.096 or 8.192Mb/s; (5)Frame offset delay measurement; (6)Programmable frame delay offset; (7)Per-channel three-state control; (8)Per-channel message mode; (9)Control interface compatible to Intel/Motorola CPUs; (10)Block programming feature for connection memory; (11)ST-BUS/MVIP and GCI interfaces; (12)Test Port compatible to IEEE-1149.1 standard.

Diagrams

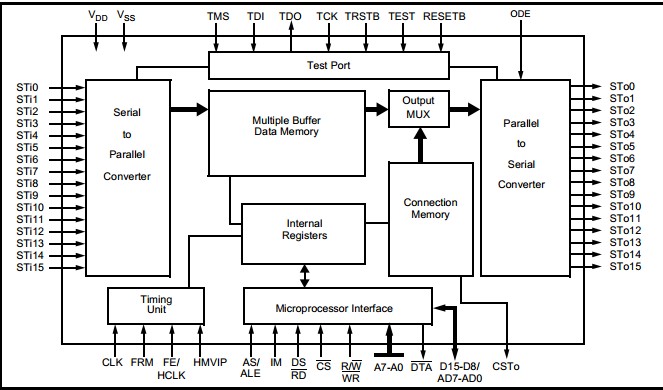

MT90820AP Functional Block Diagram
