Product Summary
The MT5135AE is an infrared T 1 3/4, 5mm water clear LED designed for applications requiring high power and high speed packaged with the lens optimized to produce a narrow viewing angle. Applications are (1)Optical Communications; (2)Safety Equipment / Automation; (3)Coin / Currency Validation.
Parametrics
MT5135AE absolute maximum ratings: (1)Forward Current: 100 mA; (2)Peak Forward Current: 200 mA; (3)Power Dissipation: 150 mW; (4)Operating Temperature Range: -20 to +80 ºC; (5)Storage Temperature: -55 to +100 ºC; (6)Lead Soldering Temperature: 260 ºC.
Features
MT5135AE features: (1)High power output; (2)High speed; (3)Straight leads.

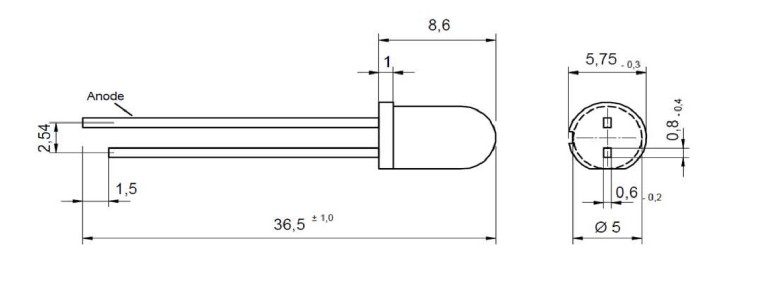

Diagrams
