Product Summary
The MM74HC273MTCX is an edge triggered flip-flop utilizes advanced silicon-gate CMOS technology to implement D-type flipflops. The MM74HC273MTCX possesses high noise immunity, low power, and speeds comparable to low power Schottky TTL circuits. The MM74HC273MTCX contains 8 master-slave flip-flops with a common clock and common clear. Data on the D input having the specified setup and hold times is transferred to the Q output on the LOW-to-HIGH transition of the CLOCK input. The CLEAR input when LOW, sets all outputs to a low state.
Parametrics
MM74HC273MTCX absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to +7.0V; (2)DC Input Voltage (VIN): -1.5 to VCC +1.5V; (3)DC Output Voltage (VOUT): -0.5 to VCC +0.5V; (4)Clamp Diode Current (IIK, IOK): ±20 mA; (5)DC Output Current, per pin (IOUT): ±25 mA; (6)DC VCC or GND Current, per pin (ICC): ±50 mA; (7)Storage Temperature Range (TSTG): -65°C to +150°C; (8)Power Dissipation (PD)(Note 3): 600 mW; (9)Power Dissipation (PD)S.O. Package only: 500 mW; (10)Lead Temperature (TL)(Soldering 10 seconds): 260°C.
Features
MM74HC273MTCX features: (1)Typical propagatiodelay: 18 ns; (2)Wide operating voltage range; (3)Low input current: 1 mA maximum; (4)Low quiescent current: 80 mA (74 Series); (5)Output drive: 10 LS-TTL loads.

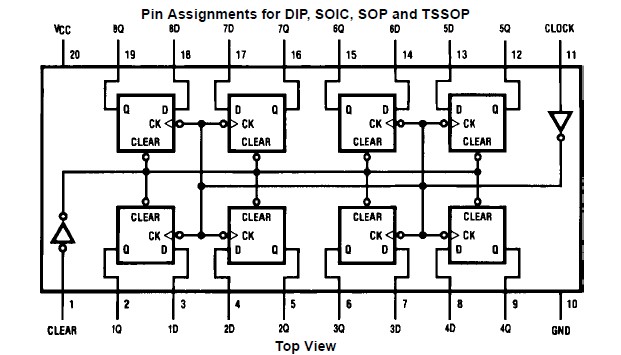

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MM74HC273MTCX |
Fairchild Semiconductor |
Flip Flops Oct D-Type Flip-Flop |
Data Sheet |
|
|
||||||||||||
 |
MM74HC273MTCX_NL |
Fairchild Semiconductor |
Flip Flops FINISHED GOOD |
Data Sheet |
Negotiable |
|
||||||||||||
