Product Summary
The MAX1737 is a switch-mode lithium-ion (Li+) battery charger that charges one to four cells. The MAX1737 provides a regulated charging current and a regulated voltage with only a ±0.8% total voltage error at the battery terminals. The external N-channel switch and synchronous rectifier provide high efficiency over a wide input voltage range. A built-in safety timer automatically terminates charging once the adjustable time limit has been reached. Applications are (1)Notebook Computers; (2)Hand-Held Instruments; (3)Li+ Battery Packs; (4)Desktop Cradle Chargers.
Parametrics
MAX1737 absolute maximum ratings: (1)CSSP, CSSN, DCIN to GND: -0.3V to +30V; (2)BST, DHI to GND: -0.3V to +36V; (3)BST to LX: -0.3V to +6V; (4)DHI to LX : -0.3V to ((BST - LX)+ 0.3V); (5)LX to GND: -0.3V to (CSSN + 0.3V); (6)FULLCHG, FASTCHG, FAULT to GND: -0.3V to +30V; (7)VL, VLO, SHDN, CELL, TIMER1, TIMER2, CCI, CCS, CCV, REF, ISETIN, ISETOUT, VADJ, THM to GND: -0.3V to +6V; (8)DLO to GND: -0.3V to (VLO + 0.3V); (9)BATT, CS to GND: -0.3V to +20V; (10)PGND to GND, CSSP to CSSN: -0.3V to +0.3V; (11)VL to VLO: -0.3V to +0.3V; (12)VL Source Current: 50mA; (13)Continuous Power Dissipation (TA = +70°C)28-Pin QSOP (derate 10.8mW/°C above +70°C): 860mW; (14)Operating Temperature Range: -40°C to +85°C; (15)Junction Temperature: +150°C; (16)Storage Temperature Range: -65°C to +150°C; (17)Lead Temperature (soldering, 10s): +300°C.
Features
MAX1737 features: (1)Stand-Alone Charger for Up to Four Li+ Cells; (2)±0.8% Accurate Battery Regulation Voltage; (3)Low Dropout: 98% Duty Cycle; (4)Safely Precharges Near-Dead Cells; (5)Continuous Voltage and Temperature Monitoring; (6)<1μA Shutdown Battery Current; (7)Input Voltage Up to +28V; (8)Safety Timer Prevents Overcharging; (9)Input Current Limiting; (10)Space-Saving 28-Pin QSOP; (11)300kHz PWM Oscillator Reduces Noise; (12)90% Conversion Efficiency.

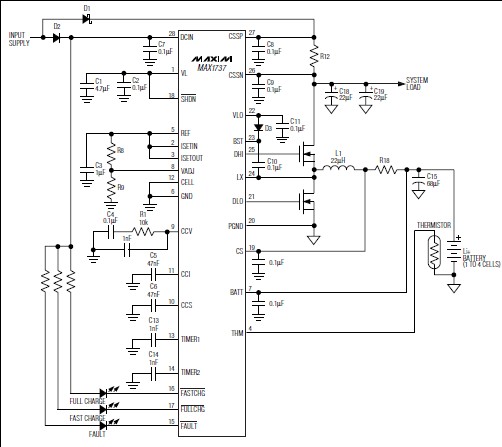

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX1737EVKIT |
Maxim Integrated Products |
Battery Management Evaluation Kit for the MAX1737 |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX1737EEI-T |
Maxim Integrated Products |
Battery Management Stand-Alone Switch-M L-Ion Battery Chargr |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX1737EEI+T |
Maxim Integrated Products |
Battery Management Stand-Alone Switch-M L-Ion Battery Chargr |
Data Sheet |
|
|
|||||||||||||
MAX1737EEI+ |
Maxim Integrated Products |
Battery Management Stand-Alone Switch-M L-Ion Battery Chargr |
Data Sheet |
|
|
|||||||||||||
MAX1737EEI |
Maxim Integrated Products |
Battery Management Stand-Alone Switch-M L-Ion Battery Chargr |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX1737 |
Other |
Data Sheet |
Negotiable |
|
