LMC567CN

LMC567CN, low power general purpose LMCMOS tone decoder, 13V, 30 mA, 500 mW, DIP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 10000 :	0.50 / Piece

PartNumber:: LMC567CN

Brand:: National Semiconductor - NS | Pack: DIP | D/C: 09+

Availability:: Supply Ability: 4/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Sukey's store

(China (Mainland))

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-25

From Other Seller

Part Number:LMC567CN
US $0.50 - 0.50
Quantity:

piece

Product Summary

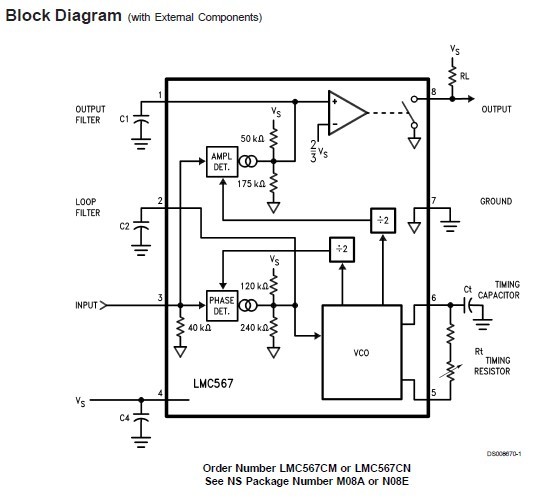

The LMC567CN is a low power general purpose LMCMOS tone decoder which is functionally similar to the industry standard LM567. It consists of a twice frequency voltage-controlled oscillator (VCO) and quadrature dividers which establish the reference signals for phase and amplitude detectors.

Parametrics

LMC567CN absolute maximum ratings: (1)Input Voltage, Pin 3: 2 Vp–p; (2)Supply Voltage, Pin 4: 10V; (3)Output Voltage, Pin 8: 13V; (4)Voltage at All Other Pins: Vs to Gnd; (5)Output Current, Pin 8: 30 mA; (6)Package Dissipation: 500 mW; (7)Operating Temperature Range (TA): -25℃ to +125℃; (8)Storage Temperature Range: -55℃ to +150℃.

Features

LMC567CN features: (1)Functionally similar to LM567; (2)2V to 9V supply voltage range; (3)Low supply current drain; (4)No increase in current with output activated; (5)Operates to 500 kHz input frequency; (6)High oscillator stability; (7)Ground-referenced input; (8)Hysteresis added to amplitude comparator; (9)Out-of-band signals and noise rejected; (10)20 mA output current capability.
