Product Summary
The LB8652T-TLM-E is a monolithic digital IC driver for digital still cameras.
Parametrics
LB8652T-TLM-E absolute maximum ratings: (1)Maximum Power Source Voltage VB max: 10.5 V; (2)Maximum Power Source Voltage VCC max: 10.5 V; (3)Maximum Applied Input Voltage VIN max: 10.5 V; (4)Maximum Applied Output Voltage VOUT max: 10.5 V; (5)Maximum Output Current 1 IO max1: 400 mA; (6)Maximum Output Current 2 IO max2: 600 mA; (7)Maximum Output Current 3 IO max3: 800 mA; (8)Allowable Power Dissipation Pd max1: 800 mW; (9)Operating Temperature Topr1: -20 to +80 °C; (10)Storage Temperature Tstg: -55 to +150 °C.
Features
LB8652T-TLM-E features: (1)Quick charge and quick discharge circuitry allow the stabilization of response speeds.; (2)Input port 1 allows shutter close control; (3)No standby current consumption (or zero).; (4)2 system power source (VB : for DC motor, VCC : others); (5)Low saturation output; (6)Built-in thermal protection circuitry; (7)Small, thin package.

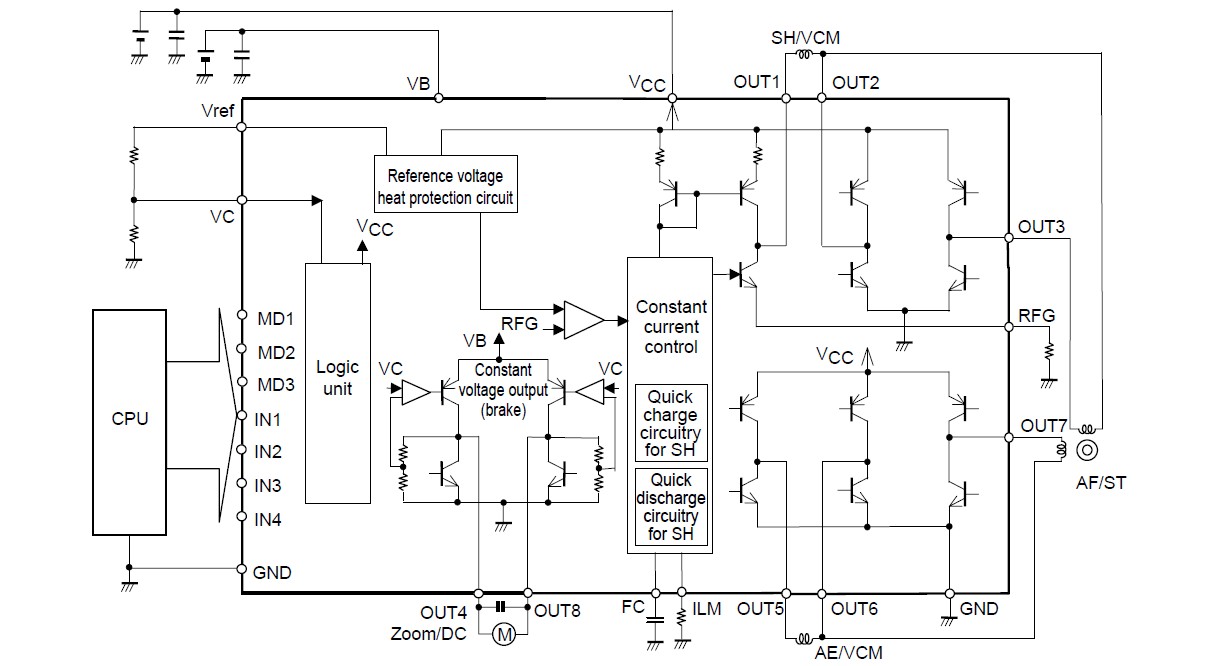

Diagrams
