Product Summary
The K6X4008C1F-GF55 is a 512kx8 bit low power full cmos static ram. The K6X4008C1F-GF55 supports various operating temperature range and various package types for user flexibility of system design. The K6X4008C1F-GF55 also support low data retention voltage for battery backup operation with low data retention current.
Parametrics
K6X4008C1F-GF55 absolute maximum ratings: (1)Voltage on any pin relative to Vss VIN,VOUT: -0.5 to VCC+0.5V(max. 7.0V)V -; (2)Voltage on Vcc supply relative to Vss VCC: -0.3 to 7.0 V -; (3)Power Dissipation PD: 1.0 W -; (4)Storage temperature TSTG: -65 to 150 °C -; (5)Operating Temperature TA: 0 to 70 °C .
Features
K6X4008C1F-GF55 features: (1)Process Technology: Full CMOS; (2)Organization: 512Kx8; (3)Power Supply Voltage: 4.5~5.5V; (4)Low Data Retention Voltage: 2V(Min); (5)Three state output and TTL compatible; (6)Package Type: 32-DIP-600, 32-SOP-525,; (7)32-TSOP2-400F/R.

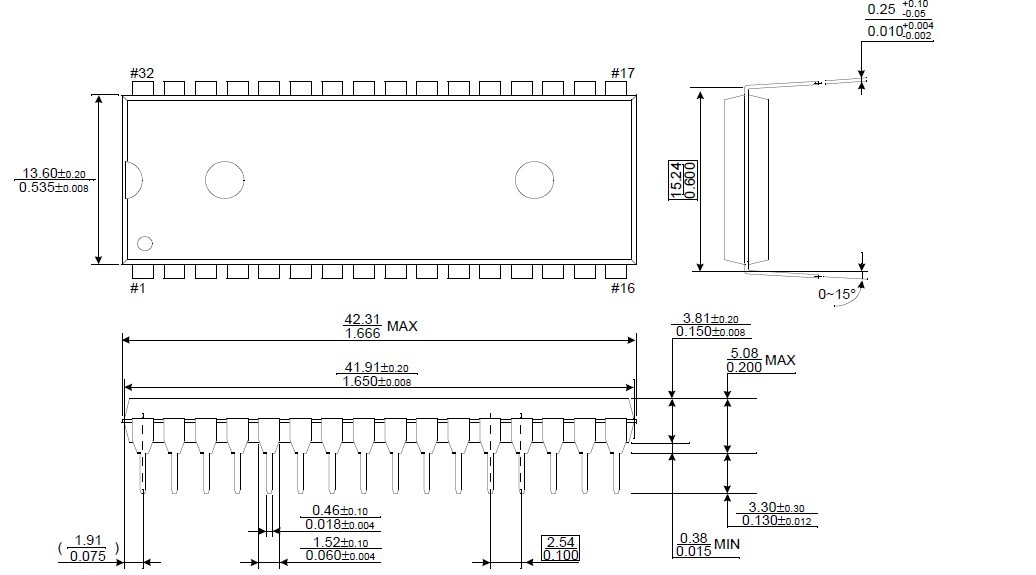

Diagrams
